Product Overview

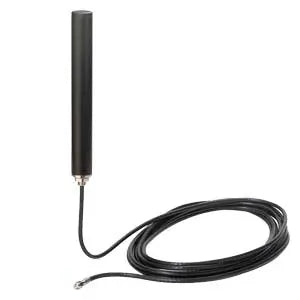

ANT794-4MR mobile wireless antenna for 2G/3G/4G EU, GSM/UMTS/LTE EU networks, rod antenna; omnidirectional; weatherproof for indoors and outdoors; 5 m connection cable permanently connected to the antenna; SMA connector; national approval and data sheet to be observed; scope of supply: 1 antenna, 1 mounting bracket, screws, screw anchors. Article Number: 6NH9860-1AA00.

Key Specifications

Network Compatibility:

• 2G/3G/4G EU networks support
• GSM (Global System for Mobile Communications)
• UMTS (Universal Mobile Telecommunications System)
• LTE (Long Term Evolution) EU networks
• Quad-band frequency support
• European network standards compliant

Antenna Design:

• Rod antenna configuration
• Omnidirectional radiation pattern
• Disc-shaped radio field concentration
• Optimized transmit and receive conditions
• Tried-and-tested design for industrial applications

Environmental Protection:

• Weatherproof construction
• Suitable for indoor and outdoor installation
• Robust design for industrial environments
• Protection against environmental conditions
• Reliable operation in harsh conditions

Connectivity:

• 5 meter connection cable permanently attached
• SMA connector interface
• Direct connection to SIMATIC NET mobile devices
• Compatible with routers, modems, and communications processors
• Weatherproof construction for indoor/outdoor use
• Omnidirectional radiation pattern for 360-degree coverage

Physical Specifications

• Net weight: 0.31 kg
• Packaging dimensions: 18.7 × 29.7 × 4.6 cm
• Rod antenna design
• Omnidirectional coverage pattern
• Compact and robust construction

Product Identifiers

• EAN: 4019169851909
• UPC: 662643194364
• Country of origin: Germany

Compliance Information

• RoHS compliant since: 03.02.2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• National approval required - refer to datasheet
• CE marking compliant

REACH Regulation Information

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead. Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Important Notes

• National approval and data sheet must be observed
• Return restricted - contact your Siemens partner for return procedures
• Professional installation recommended
• Proper grounding and mounting essential for optimal performance
• Cable length cannot be extended without affecting performance

Functionality

Signal Performance:

• Optimizes reception and emission of signals
• Improves radio communication quality over built-in antennas
• Enhances field strength for better connectivity
• Omnidirectional coverage eliminates positioning requirements
• Reliable operation in harsh industrial environments

Installation & Mounting:

• Complete mounting kit included (bracket, screws, anchors)
• Permanently connected cable eliminates connection issues
• Suitable for wall, pole, or equipment mounting
• Professional installation recommended

Applications

• SIMATIC NET mobile network devices and industrial communication systems
• Telecontrol applications (water/wastewater, oil/gas, utilities)
• Railway and public transport communication systems
• Remote monitoring in difficult-to-access or aggressive environments
• Process automation with wireless communication requirements

Download existing graphical data for this product:

• Product Datasheet

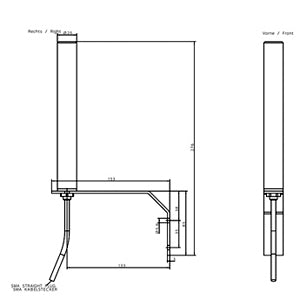

• CAD Drawings & Technical Documentation
• Certificates
• Siemens Industry Mall Product Page
• Siemens Technical Support Center for technical documentation requests
