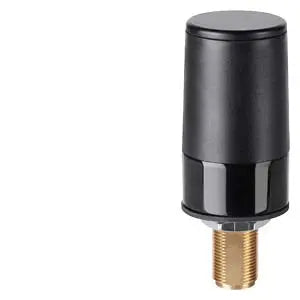

Siemens ANT896-4ME Mobile wireless antenna

Product Overview

The ANT896-4ME is a mobile wireless antenna designed for GSM (2G), UMTS (3G), and LTE (4G) networks. This omnidirectional antenna provides reliable wireless communication for industrial applications, featuring robust construction with IP66 protection rating and 3 dBi gain for enhanced signal strength.

Key Features

Multi-Standard Network Support

• Compatible with GSM (2G), UMTS (3G), and LTE (4G) networks
• Omnidirectional radiation characteristic for 360° coverage
• 3 dBi antenna gain for enhanced signal strength
• N-Connect female connector for secure connections

Rugged Construction

• IP66 protection rating for dust and water resistance
• Operating temperature range: -40°C to +70°C
• Weatherproof construction suitable for outdoor applications

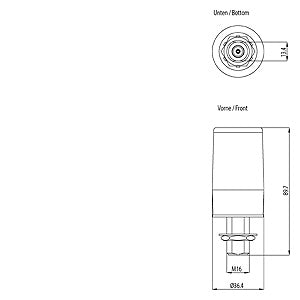

• Compact cylindrical design (61mm length)

Flexible Installation

• Control cabinet mounting capability
• Remote positioning via SIMATIC NET antenna connection cables
• Optimized placement for best radio transmission conditions
• Professional-grade construction for industrial environments

Technical Specifications

Physical & Electrical

• Dimensions: 24.3 x 8.1 x 17.0 mm (packaging)
• Net Weight: 0.220 kg
• Antenna Length: 0.061 m
• Antenna Gain: 3 dBi
• Connector Type: N-Connect female
• Impedance: 50 Ohm (typical)

Network Compatibility

• GSM (2G): 850, 900, 1800, 1900 MHz
• UMTS (3G): 2100 MHz
• LTE (4G): 700, 800, 1700, 1800, 2600 MHz
• GPS: 1575.42 MHz (positioning applications)

Environmental Specifications

• Protection Rating: IP66
• Operating Temperature: -40°C to +70°C
• Industrial-grade mechanical stability
• Resistant to condensation and moisture

Compliance & Standards

• RoHS Compliant (since September 23, 2014)
• CE marked for European compliance
• National approvals required (observe local regulations)
• Country of origin: China

Product Identification

• Article Number: 6GK5896-4ME00-0AA0
• EAN: 4019169855365
• UPC: 804766084416

REACH Compliance Information This product contains Lead in concentrations higher than 0.1% w/w. Based on current information, these substances do not pose risks when the product is used as intended, including disposal. Please refer to product documentation for additional details.

Export Control Information

• Export Control: AL: N / ECCN: 5A991X

Applications & Compatible Devices

• Telecontrol applications in water/wastewater and oil/gas systems
• Railway applications and public transportation
• Industrial IoT and remote monitoring systems
• Compatible with SCALANCE M routers, SIMATIC communication processors, LOGO! CMR modules, and SIMATIC RTU telecontrol units

Scope of Delivery

• 1x ANT896-4ME antenna with N-Connect female connector
• Compact instructions (German/English hard copy)
• Mounting hardware for control cabinet installation
