Siemens Actuator head for 3SE5 limit switch, 76mm Part number 3SE5000-0AR03

Product Overview

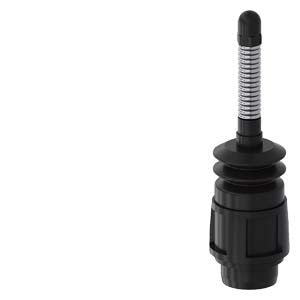

Actuator head featuring spring rod design for position switches 3SE51/52, specifically designed for use with snap-action contacts only. This professional-grade spring rod actuator has a total length of 76mm with spring length of 23.5mm and plunger length of 10mm, constructed from durable plastic material for reliable position sensing and monitoring applications.

Technical Specifications

Article Number: 3SE5000-0AR03

Design Characteristics:

• Application: Position switches 3SE51/52
• Actuator type: Spring rod
• Contact type: Snap-action contacts only

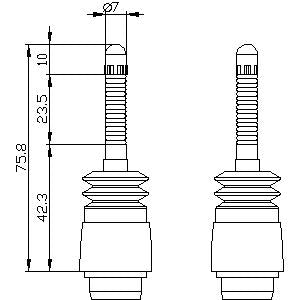

• Total length: 76mm
• Spring length: 23.5mm
• Plunger length: 10mm
• Material: Plastic construction
• Series: SIRIUS 3SE5

Design Features:

• Spring rod actuator mechanism
• Plastic construction for durability
• Snap-action contact compatibility
• Modular design for versatile applications
• LED status indication capability
• Quick-connect technology for reduced connection time
• Plug-in connector compatibility
• Wide variety of configurations available

Application Areas:

• Position sensing of machine parts
• Position monitoring of protection equipment
• Industrial automation systems
• Safety circuit applications
• Manufacturing process control
• Machine control systems
• Equipment protection monitoring

Physical Properties:

• Net weight: 0.030 kg
• Total length: 76mm
• Spring length: 23.5mm
• Plunger length: 10mm
• Packaging dimensions: 30.00 x 95.00 x 10.00 mm
• Material: Plastic
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4011209696068

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: No
• REACH Regulation: Contains Imidazolidine-2-thione (2-imidazoline-2-thiol) in concentrations higher than 0.1% weight by weight. Based on current information, this substance does not pose risk when used as intended.

Standards Compliance:

• EN 50047 compliant
• EN 50041 compliant
• IEC certified
• UL certified
• CSA certified
• CE marked
