Schneider GZ1 Motor circuit breaker, 3-pole, 4 - 6.3A
Schneider GZ1 Motor circuit breaker, 3-pole, 4 - 6.3A

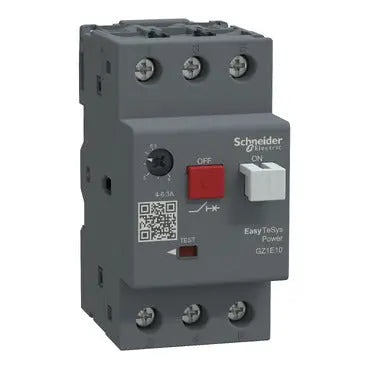

Schneider GZ1 Motor circuit breaker, 3-pole, 4 - 6.3A Part number GZ1E10

This motor circuit breaker from the Easy TeSys range provides thermal-magnetic motor protection with an adjustable range of 4-6.3 A. It offers high breaking capacity and is suitable for motors in AC networks with operational voltages up to 690 V, ensuring reliable motor protection.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
This motor circuit breaker from the Easy TeSys range provides thermal-magnetic motor protection with an adjustable range of 4-6.3 A. It offers high breaking capacity and is suitable for motors in AC networks with operational voltages up to 690 V, ensuring reliable motor protection.
Specifications
Specifications
x
IP RatingIP20 conforming to IEC 60529
Country of OriginGermany
Compliance/CertificationsIEC 60947-2 / IEC 60947-4
Temperature: Operating-20°C to 60°C
Part Depth (mm)78mm
Part Width (mm)44.5mm
Part Height (mm)89mm
Weight (g)260g
Packaging size / unit1 pc(s)
Connection Style3 Poles
Connection TypeScrew clamp terminals 2 1…6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Max Frequency50 / 60 Hz
Type of VoltageAC
Rated Operating Voltage690 VAC
Mounting TypeSlips / Screws / Rail
Operating Period100000 cycles (Mechanical) / 100000 cycles for AC-3 (Electrical)
ColourGrey
RAL CodeRAL 7011
Documents
Documents
x
Download Datasheet
