Description

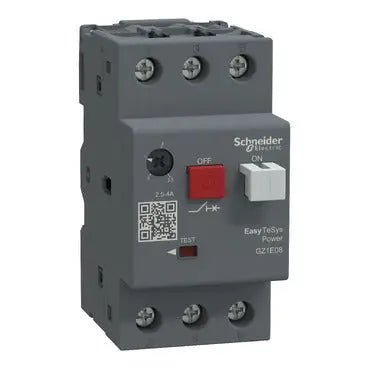

xThe GZ1E08 motor circuit breaker from the Easy TeSys range is designed to protect motors with a thermal-magnetic trip unit and an adjustable protection range of 2.5-4 A. It is suitable for AC networks with a rated operational voltage of up to 690 V and features high breaking capacity, making it ideal for industrial motor protection applications.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | IEC 60947-4 / IEC 60947-2 |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 78mm |
| Part Width (mm) | 44.5mm |
| Part Height (mm) | 89mm |
| Weight (g) | 260g |
| Packaging size / unit | 1 pc(s) |
| Connection Style | 3 Poles |
| Connection Type | Screw clamp terminals 2 1…6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Slips / Screws / Rail |
| Operating Period | 100000 cycles (Mechanical) / 100000 cycles for AC-3 (Electrical) |
| Colour | Grey |
