Description

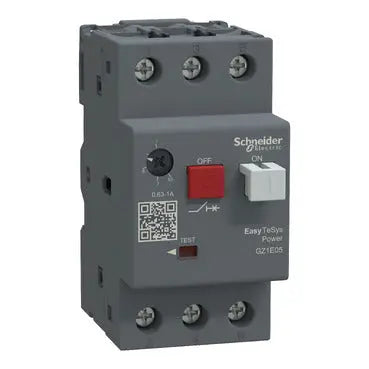

xThis motor circuit breaker features a thermal-magnetic trip unit with a range of 0.63–1 A. It is ideal for protecting motors up to 0.55 kW at 690 V AC in industrial environments.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | IEC 60947-4 / IEC 60947-2 |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 78mm |
| Part Width (mm) | 44.5mm |
| Part Height (mm) | 89mm |
| Weight (g) | 260g |
| Packaging size / unit | 1 pc(s) / 24 pc(s) / 384 pc(s) |
| Connection Type | Screw clamp terminals 2 1 - 6 mm² - cable stiffness: solid / Screw clamp terminals 2 1.5 - 6 mm² - cable stiffness: flexible without cable end / Screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible with cable end |
| Max Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | By clips / Rail / By screws |
| Operating Period | 100000 cycles (mechanical) / 100000 cycles for AC-3 (electrical) |
| Colour | Grey |
| RAL Code | RAL 7011 |
