Description

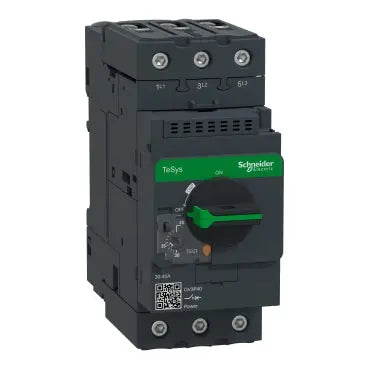

xThis motor circuit breaker supports thermal-magnetic protection with a range of 30–40 A. It is suitable for motors up to 37 kW at 690 V AC and offers robust performance for industrial motor protection systems.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | ABS / ATEX / BV / CCC / CSA / DNV-GL / EAC / LROS (Lloyds Register of Shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 136mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 132mm |
| Weight (g) | 960g |
| Packaging size / unit | 1 pc(s) / 120 pc(s) |
| Tightening Torque | 5 Nm |
| Max Frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | 35 mm symmetrical DIN rail: clipped / Panel: screwed (with 3 x M4 screws) |
| Current Rating / Rated Current | 40 A |
| Operating Period | 50000 cycles (mechanical) / 50000 cycles for AC-3 at 415 V In (electrical) |
| Colour | Dark grey |
