Description

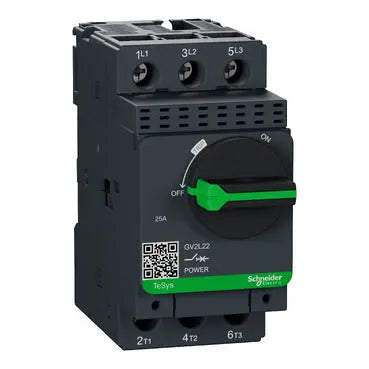

xThis motor circuit breaker is designed for 25 A applications, providing magnetic trip technology to protect motors up to 18.5 kW at 690 V AC. It ensures efficient motor control in industrial systems.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | BV / CCC / CSA / DNV-GL / EAC / IECEE CB Scheme / LROS (Lloyds Register of Shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 97mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 89mm |
| Weight (g) | 330g |
| Packaging size / unit | 1 pc(s) / 20 pc(s) / 320 pc(s) |
| Tightening Torque | 1.7 Nm |
| Max Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | 35 mm symmetrical DIN rail: clipped / Panel: screwed (with 2 x M4 screws) |
| Current Rating / Rated Current | 25 A |
| Operating Period | 100000 cycles (mechanical) / 100000 cycles (electrical) |
| Warranty | 18 Months |
| Colour | Dark grey |
