Description

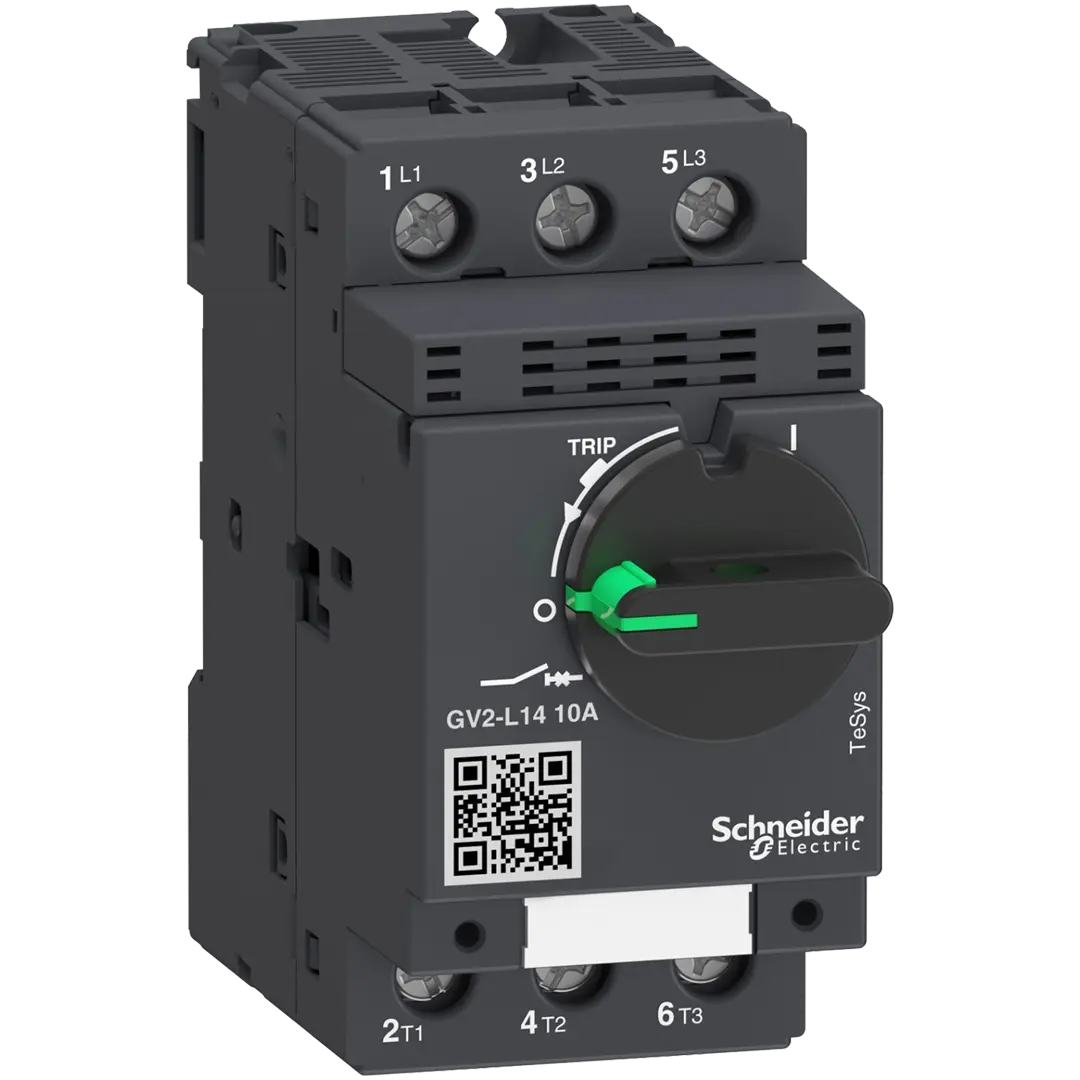

xTeSys GV2 thermal-magnetic motor circuit breaker is to protect three-phase motors, the cables, the people, against short circuits and overloads. It works with LC1D contactors, which is suitable for Group Installation. Functional unit Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 690V and rated current 4A. This protection is ensured in accordance with a 3 poles and IP 20.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1,IEC/EN 60335-2-40:Annex JJ |
| Temperature: Operating | -20…60 °C |
| Part Depth (mm) | 97mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 89mm |
| Tightening Torque (N.m) | 1.7 Nm |
| Max Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Operating Period(Mech) | 100000 cycles |
| Operating Period(Elec) | 100000 cycles for AC-3 at 415 V In,100000 cycles for AC-3e at 415 V In |
| Colour | Dark grey |
