Description

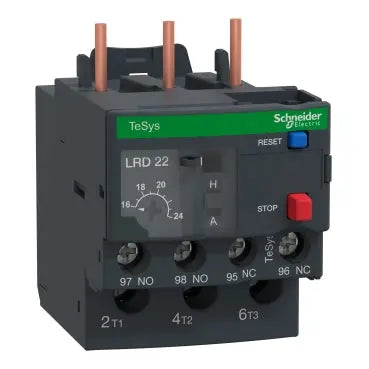

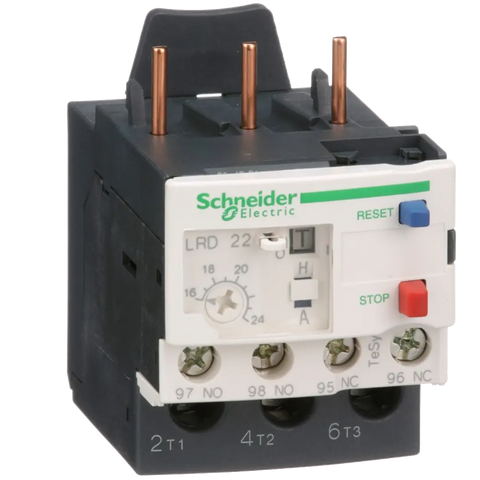

xThis thermal overload relay from the TeSys LRD series is designed to provide motor protection with an adjustable thermal protection range of 16–24 A. It is compatible with LC1D25, LC1D32, and LC1D38 contactors and features phase failure sensitivity. This relay offers class 10A protection and can be mounted on plates, rails, or under contactors.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / DNV-GL / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB/T 14048.4 / GB/T 14048.5 / IEC / INERIS / LROS (Lloyds register of shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 66mm |
| Weight (g) | 124g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 1.7 - 2.5 Nm |
| Connection Style | 1 NO + 1 NC |
| Connection Type | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² solid |
| Max Frequency | 0 / 400 Hz |
| Type of Voltage | AC/DC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate, with specific accessories rail, with specific accessories under contactor |
| Warranty | 18 Months |
| Colour | Red / Blue / Black |
