Description

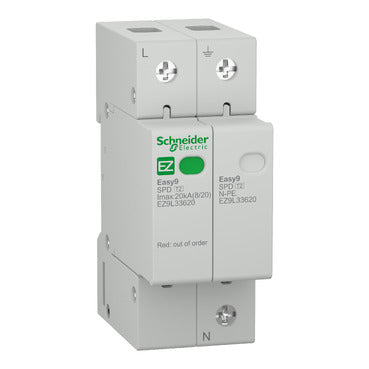

xThis Easy9 surge arrester offers 1P+N protection with a maximum discharge current of 20 kA, designed for use in TT and TN-S earthing systems. It provides protection for electrical distribution networks at 230 V, with a response time of ≤25 ns.
Specifications
x| IP Rating | IP20 on terminal |
| Country of Origin | Germany |
| Compliance/Certifications | IEC 61643-11 / GOST EAC |
| Temperature: Operating | -5°C to 60 °C |
| Part Depth (mm) | 66.2mm |
| Part Width (mm) | 36mm |
| Part Height (mm) | 90mm |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Style | 1 Pole + N |
| Connection Type | Tunnel type terminal (downside) 5…35 mm² solid or flexible |
| Mounting Type | Clip-on DIN rail |
| Colour | Grey |
| RAL Code | RAL 7035 |
