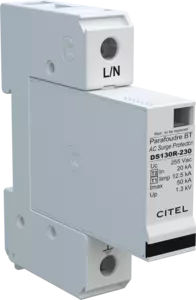

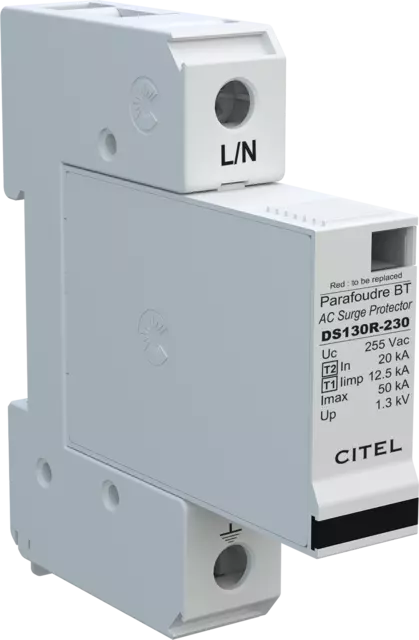

Citel DS131R-230 SPD, type 1+2, AC, 1-pole Part number 571501

Product Overview

The DS131R-230 is an extreme duty Type 1+2 AC surge protector designed to protect the entrance of electrical installations in 230/400V applications. This single-pole SPD features combined Type 1 and Type 2 protection with 12.5kA impulse current capability, providing comprehensive protection against both direct lightning strikes and indirect surges in common mode or differential mode configurations for multipolar installations.

Key Features:

• Combined Type 1+2 Protection: Provides both primary (Type 1) and secondary (Type 2) surge protection in a single device
• High Impulse Current Rating: 12.5kA impulse current capability (10/350μs) for direct lightning strike protection
• Modular Single-Pole Design: Individual pluggable module for each phase allowing flexible multipolar configuration
• High Discharge Capacity: 20kA nominal discharge current with 50kA maximum discharge (8/20μs)
• Dual Mode Capability: Can be used in common mode or common and differential mode protection
• DIN Rail Compatible: Standard DIN rail mounting for easy installation
• Remote Signaling Option: Optional DS131RS-230 version available with changeover contact for remote monitoring
• Extreme Duty Rated: Designed for service entrance protection in high-risk lightning areas

Technical Specifications:

• Article Number: DS131R-230 (Part Number 571501)
• Protection Type: Type 1+2 AC surge protector
• Configuration: Single-pole (1-pole)
• Network: 230/400V AC
• Max. AC Operating Voltage: 255Vac (typical for 230V variant)
• Nominal Discharge Current (In): 20kA (8/20μs)
• Max. Discharge Current (Imax): 50kA (8/20μs)
• Impulse Current (Iimp): 12.5kA per pole (10/350μs)
• Protection Level (Up): 1.5kV (typical)
• Short-Circuit Current Rating: 25,000A
• Mounting: DIN Rail compatible

Compatible Accessories:

• Remote Signaling Version: DS131RS-230 (with changeover contact, Part Number 571511)
• Voltage Variants: DS131R-120 (120V systems), DS131R-400 (400V systems)
• Multi-Pole Configurations: DS132R-230/G (2-pole single-phase), DS134RS-230/G (4-pole 3-phase+N)
• Enhanced Protection: DS131VG-230 (VG technology version)
• Updated Model: DAC1-13-10-275 (latest innovation)

Compliance & Certifications:

• Standards: IEC 61643-11, EN 61643-11, UL1449 4th Edition
• Environmental: RoHS compliant

Applications:

Essential for service entrance protection in buildings equipped with lightning rods, high lightning density areas, industrial facilities, commercial buildings, telecommunications installations, data centers, critical infrastructure, residential main panels, and any 230/400V electrical installation requiring combined Type 1+2 protection against both direct lightning strikes and indirect surges, particularly in multipolar configurations for single-phase, 3-phase, and 3-phase+Neutral AC networks where extreme duty protection at the main electrical entrance is critical for comprehensive system and equipment safety.
