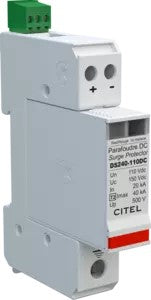

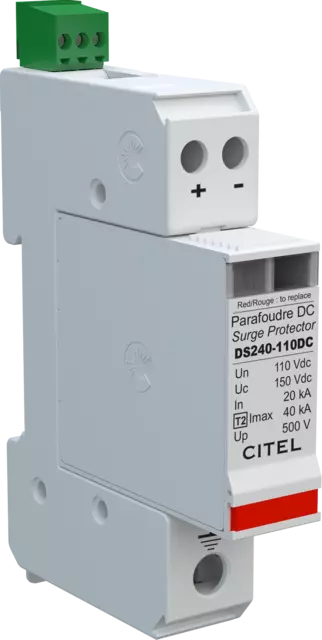

Citel DS240S-110DC SPD, compact, type 2, DC/PV network, 110VDC

Product Overview

The DS240S-110DC is a compact Type 2 DC power surge protector designed to protect equipment connected to 110Vdc DC and photovoltaic power supplies from lightning surges and transient overvoltages. This 2-pole modular SPD features metal oxide varistor (MOV) technology with integrated thermal disconnection, providing reliable protection with very low protection levels for DC systems, solar installations, and battery-powered applications operating at 110Vdc nominal voltage.

Key Features:

• MOV Technology: Metal oxide varistor-based protection matched to network voltage for optimal surge suppression
• High Surge Capacity: Maximum discharge current of 40kA per module (8/20μs) with 80kA total system capacity
• Compact Modular Design: Pluggable module configuration for easy installation and replacement
• Thermal Protection: Integrated thermal disconnection devices to control end-of-life with visual fault indicator
• Remote Signaling: Built-in changeover contact for remote status indication and monitoring
• Very Low Protection Level: Optimized voltage protection rating (Up) for sensitive electronic equipment
• Dual Network Compatibility: Suitable for both DC power networks and photovoltaic (PV) systems
• Low Leakage Current: Residual current less than 0.2mA at maximum operating voltage
• 10-Year Warranty: Long-term reliability with comprehensive manufacturer warranty
• UL Compliant Design: Type 4CA rating for North American installations

Technical Specifications:

• Article Number: DS240S-110DC (Part Number 310711)
• Protection Type: Type 2 DC surge protector
• Configuration: 2-pole
• Nominal Network Voltage: 110Vdc (DC or PV network)
• Max. DC Operating Voltage: 150Vdc
• Max. AC Operating Voltage: 115Vac
• Nominal Discharge Current (In): 20kA (8/20μs)
• Max. Discharge Current (Imax): 40kA per module (8/20μs)
• Total Max. Discharge Current: 80kA
• Residual Current: < 0.2mA
• Dimensions: 99mm (L) x 18mm (W) x 67mm (H)
• Weight: 0.12kg (120g)
• Mounting: DIN Rail compatible
• Environmental Rating: IP20
• Operating Temperature: -40°C to +85°C

Compatible Accessories:

• Voltage Variants: DS240S-75DC (75Vdc systems), DS240S-95DC (95Vdc systems), DS240S-130DC (130Vdc systems)
• Higher Voltage Models: DS240S-280DC (280Vdc systems), DS240S-350DC (350Vdc systems)
• Alternative Configuration: DS240-110DC (without standard remote signaling)
• Photovoltaic Models: DS240S-220DC for solar installations

Compliance & Certifications:

• International Standards: IEC 61643-11, EN 61643-11
• North American Standards: UL1449 Edition 5, UL Type 4CA
• European Certification: TÜV certified
• International Certification: EAC (Eurasian Conformity)
• Environmental: RoHS compliant

Applications:

Essential for protecting DC-powered equipment in solar photovoltaic installations, battery energy storage systems, telecommunications facilities, industrial DC power distribution, uninterruptible power supply (UPS) systems, electric vehicle charging infrastructure, railway signaling equipment, emergency lighting systems, process control instrumentation, off-grid power systems, marine electronics, and any 110Vdc application requiring reliable surge protection against lightning-induced transients and switching overvoltages in harsh electrical environments.
