Description

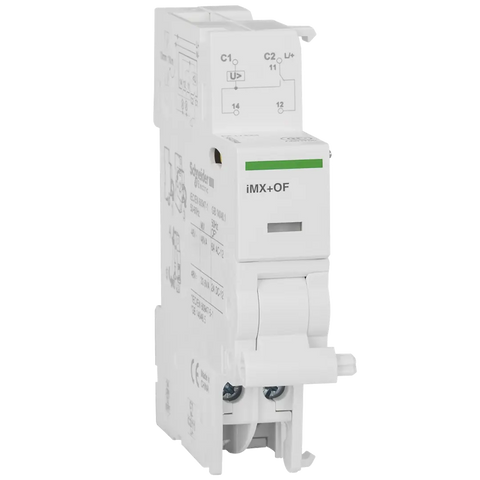

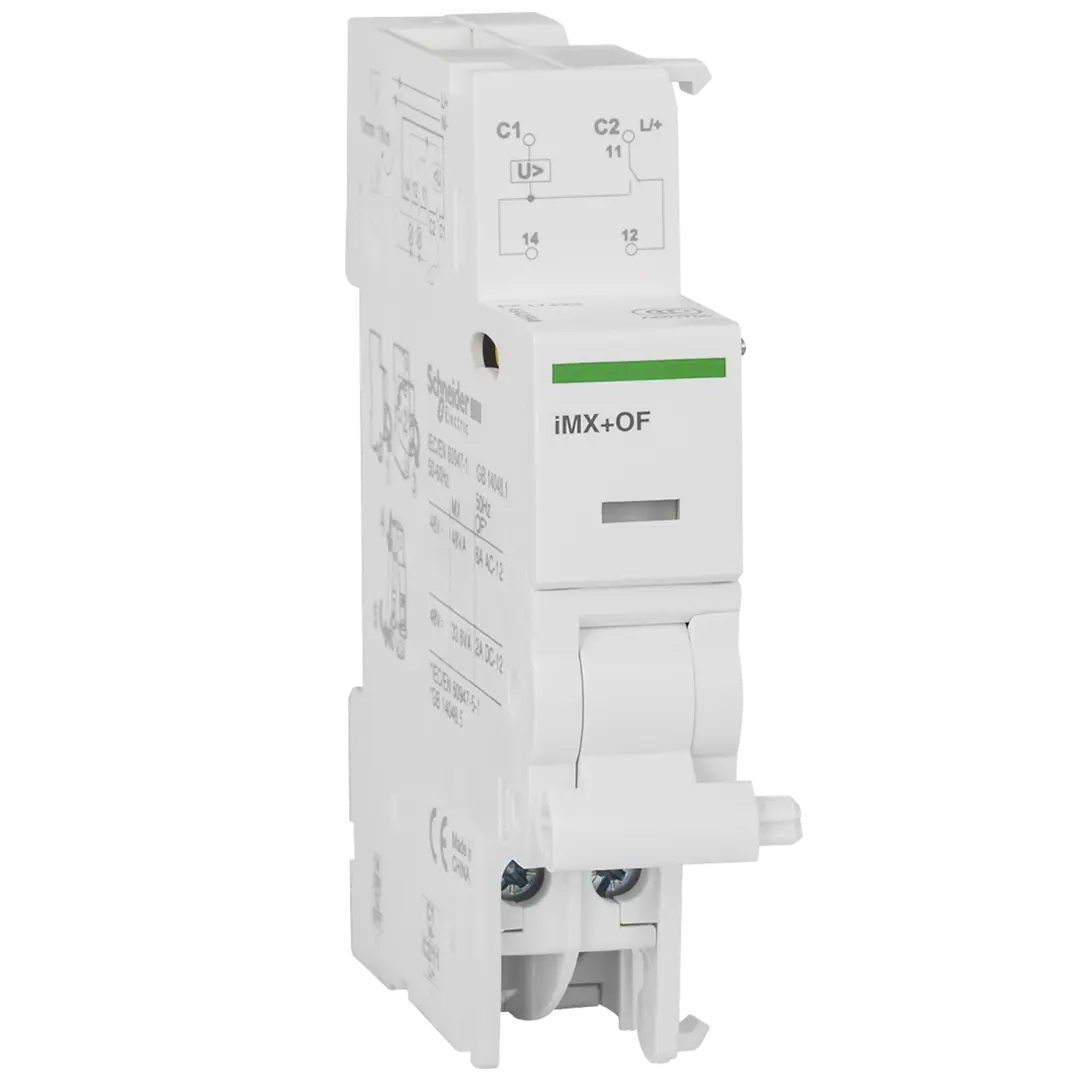

xThe electrical auxiliaries are combined with iC60,iC40,iCV40, iDPN Vigi circuit breakers, ilD, ilD40 residual current circuit breakers, remote tripping switch disconnector ISW-NA; They enable tripping upon a fault. They are fastened by clips (without tools) to the left side of the breaker. iMX+OF is shunt release with open/close contact The main purpose of Auxiliary MX+OF is as an emergency stoppage by normally open push button and the remote indication of the position of the associated device. To trips the associated device when it is powered on during 20 years with 48 V AC 50/60 Hz.
Specifications
x| Compliance/Certifications | EN/IEC 60947-1,EN/IEC 60947-5-1 |
| Temperature: Operating | -35…70 °C |
| Part Width (mm) | 18mm |
| Tightening Torque (N.m) | 1 Nm |
| Connection Type | Clamp terminal - 1 cable(s) 5 mm² - rigid,Clamp terminal - 2 cable(s) 2.4 mm² - rigid,Clamp terminal - 1 cable(s) 3 mm² - flexible,Clamp terminal - 2 cable(s) 2.4 mm² - flexible with cable end |
| Mounting Type | Clip-on |
| Colour | White |
