Description

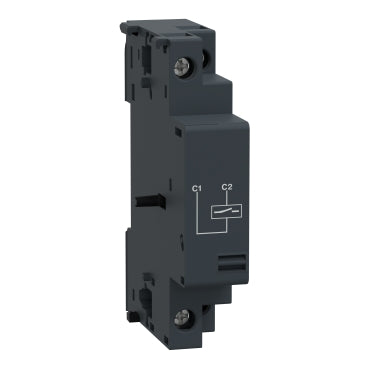

xThis shunt release is designed for remote tripping of motor circuit breakers in the TeSys GV2 and GV3 ranges. It operates at 220–240 V AC and is suitable for applications requiring reliable remote motor protection.
Specifications
x| Part Depth (mm) | 66mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 89mm |
| Weight (g) | 105g |
| Packaging size / unit | 1 pc(s) / 16 pc(s) |
| Connection Type | Screw clamp terminals 1 cable(s) 1 - 2.5 mm²solid / Screw clamp terminals 2 cable(s) 1 - 2.5 mm²solid / Screw clamp terminals 1 cable(s) 0.75 - 2.5 mm²flexible without cable end / Screw clamp terminals 2 cable(s) 0.75 - 2.5 mm²flexible without cable end / Screw clamp terminals 1 cable(s) 0.75 - 1.5 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 0.75 - 1.5 mm²flexible with cable end |
| Power Consumption | 1.6 W / 5 VA AC |
| Operating Period | 10000 cycles with GV3P and GV3L / 30000 cycles with GV2ME and GV2P (mechanical) |
| Warranty | 18 Months |
| Colour | Dark grey |
