Description

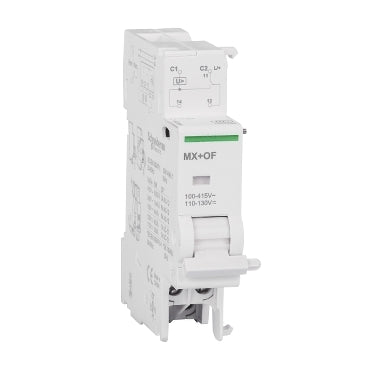

xThis Acti9 MX shunt trip release with OC contact is designed for remote tripping of circuit breakers. It supports control circuit voltages from 100 to 415 V AC and 110 to 130 V DC and is compatible with various Acti9 series products. Its compact design allows for easy DIN rail mounting.
Specifications
x| Compliance/Certifications | EN/IEC 60947-1 |
| Temperature: Operating | -25°C to 50 °C |
| Part Depth (mm) | 73.5mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 82.5mm |
| Weight (g) | 65g |
| Packaging size / unit | 1 / 8 / 72 pc(s) |
| Tightening Torque | 1 Nm |
| Connection Type | Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible / Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule / Screw clamp terminal (bottom) - 1 cable(s) 0.5…2.5 mm² - rigid |
| Mounting Type | 35 mm symmetrical DIN rail / Fixed |
| Current Rating / Rated Current | 3 - 6 A |
| Warranty | 18 Months |
| Colour | White |
