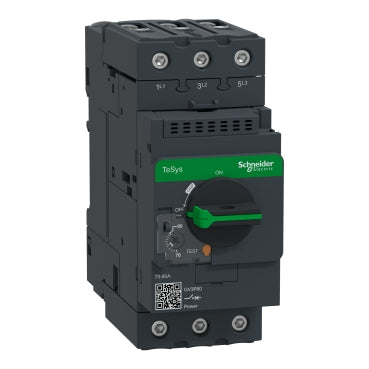

Schneider Motor circuit breaker, thermal magnetic, 70 - 80A

This motor circuit breaker offers a thermal-magnetic trip range of 70–80 A. It protects motors up to 55 kW at 690 V AC, ensuring reliable operation in heavy-duty industrial environments.
Vendor: Schneider Electric
SKU: GV3P80
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This motor circuit breaker offers a thermal-magnetic trip range of 70–80 A. It protects motors up to 55 kW at 690 V AC, ensuring reliable operation in heavy-duty industrial environments.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsABS / ATEX / BV / CCC / CSA / DNV-GL / EAC / LROS (Lloyds Register of Shipping) / UKCA
Temperature: Operating-20 °C to 60 °C
Part Depth (mm)136mm
Part Width (mm)55mm
Part Height (mm)132mm
Weight (g)960g
Packaging size / unit1 pc(s) / 120 pc(s)
Tightening Torque5 Nm
Max Frequency50/60 Hz
Type of VoltageAC
Rated Operating Voltage690 VAC 50/60 Hz
Mounting Type35 mm symmetrical DIN rail: clipped / Panel: screwed (with 3 x M4 screws)
Current Rating / Rated Current80 A
Operating Period50000 cycles (mechanical) / 20000 cycles for AC-3 at 415 V In (electrical)
Warranty18 Months
ColourDark grey
Documents
Documents
x
Download Datasheet
