Description

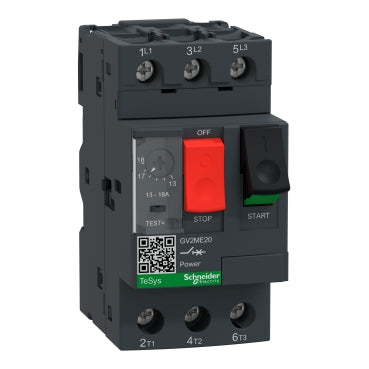

xThis TeSys GV2 motor circuit breaker is designed for motor protection, offering 3-pole protection with a rated current range of 13-18 A. It includes thermal-magnetic trip technology and is suitable for motors up to 7.5 kW at 400 V AC, with a 100 kA short-circuit breaking capacity at 230 V. The device is compatible with DIN rail or panel mounting.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / CSA / DNV-GL / EAC / EN/IEC 60947-2 / EN/IEC 60947-4-1 / LROS (Lloyds register of shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 89mm |
| Weight (g) | 260g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Style | 3 Poles |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | 35 mm symmetrical DIN rail / Clipped Panel / Screwed with adaptor plate |
| Current Rating / Rated Current | 18 A |
| Operating Period | 100000 cycles (Mechanical) / 100000 cycles for AC-3 at 415 V In\n100000 cycles for AC-3e at 415 V In (Electrical) |
| Warranty | 18 Months |
| Colour | Dark Grey |
