Description

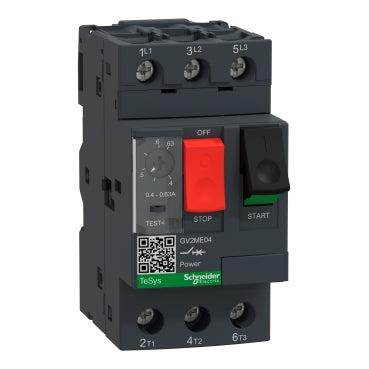

xThis motor circuit breaker protects motors up to 0.37 kW at 690 V AC with a thermal magnetic trip range of 0.4-0.63 A. It is suitable for industrial motor protection applications.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | ATEX / BV / CCC / CSA / DNV-GL / EAC / LROS (Lloyds Register of Shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 89mm |
| Weight (g) | 260g |
| Packaging size / unit | 1 pc(s) / 24 pc(s) / 384 pc(s) |
| Tightening Torque | 1.7 Nm |
| Max Frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | 35 mm symmetrical DIN rail: clipped / Panel: screwed (with adaptor plate) |
| Current Rating / Rated Current | 0.63 A |
| Operating Period | 100000 cycles (mechanical) / 100000 cycles for AC-3 at 415 V In / 100000 cycles for AC-3e at 415 V In (electrical) |
| Warranty | 18 Months |
| Colour | Dark grey |
