Schneider Motor circuit breaker, spring, 3-pole, 1 - 1.6A
Schneider Motor circuit breaker, spring, 3-pole, 1 - 1.6A

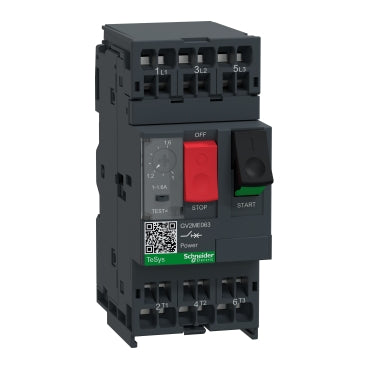

Schneider Motor circuit breaker, spring, 3-pole, 1 - 1.6A Part number GV2ME063

This motor circuit breaker is rated for 1.6 A with a thermal magnetic trip range of 1-1.6 A. It protects motors up to 0.75 kW at 690 V AC and is designed for efficient motor control in industrial environments.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This motor circuit breaker is rated for 1.6 A with a thermal magnetic trip range of 1-1.6 A. It protects motors up to 0.75 kW at 690 V AC and is designed for efficient motor control in industrial environments.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsATEX / BV / CCC / CSA / DNV-GL / EAC / LROS (Lloyds Register of Shipping) / RINA / UL / UKCA
Temperature: Operating-20 °C to 60 °C
Part Depth (mm)78.5mm
Part Width (mm)45mm
Part Height (mm)101mm
Weight (g)280g
Packaging size / unit1 pc(s) / 20 pc(s)
Max Frequency50/60 Hz conforming to IEC 60947-4-1
Type of VoltageAC
Rated Operating Voltage690 VAC 50/60 Hz conforming to IEC 60947-2
Mounting Type35 mm symmetrical DIN rail: clipped / Panel: screwed (with adaptor plate)
Current Rating / Rated Current1.6 A
Operating Period100000 cycles (mechanical) / 100000 cycles for AC-3 at 415 V In / 100000 cycles for AC-3e at 415 V In (electrical)
Warranty18 Months
ColourDark grey
Documents
Documents
x
Download Datasheet
