Description

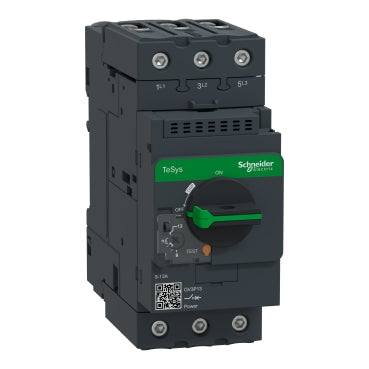

xThis motor circuit breaker is a 3-pole device with a 9-13A rating, designed to provide protection for motor circuits within control panels. It carries an IP20 rating and is suited to operation across a temperature range of -20 to 60°C, with a rated operating voltage of 690 V AC at 50/60 Hz. The EverLink connection system is intended for reliable termination in panel-building applications, with a specified tightening torque of 5 Nm.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Operating temperature: -20…60 °C
- Colour: Dark grey
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1,IEC/EN 60335-1:Clause 30.2,IEC/EN 60335-2-40:Annex JJ |
| Temperature: Operating | -20…60 °C |
| Part Depth (mm) | 136mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 132mm |
| Weight (g) | 960.0g |
| Tightening Torque (N.m) | 5 Nm |
| Max Frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Operating Period(Mech) | 50000 cycles |
| Operating Period(Elec) | 50000 cycles for AC-3 at 415 V In |
| Colour | Dark grey |
