Description

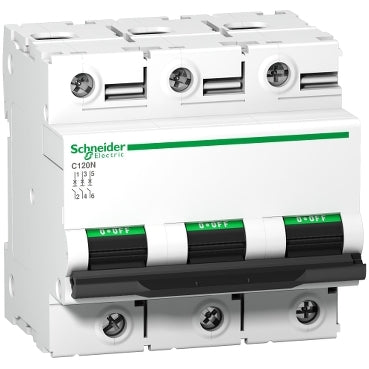

xThis Acti9 C120N three-pole miniature circuit breaker with a D curve supports a 125 A rated current, providing a breaking capacity of 10,000 A at 230-400 V AC, suitable for high-inrush current applications.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | EN/IEC 60947-2 / EN/IEC 60898-1 |
| Temperature: Operating | -25°C to 70 °C |
| Part Depth (mm) | 73mm |
| Part Width (mm) | 81mm |
| Part Height (mm) | 81mm |
| Weight (g) | 615g |
| Packaging size / unit | 1 / 4 / 24 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Type | Tunnel type terminals1 - 50 mm² rigid / Tunnel type terminals 1.5 - 35 mm² flexible |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | <= 375 VDC |
| Mounting Type | 35 mm symmetrical DIN rail / Clip-on |
| Current Rating / Rated Current | 125 A |
| Operating Period | 20000 cycles (mechanical) / 5000 cycles conforming to IEC 60947-2 (electrical) |
| Warranty | 18 Months |
| Colour | White |
