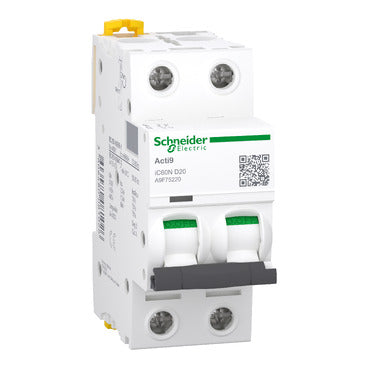

Schneider Miniature circuit-breaker, D-curve, 2-pole, 20A Part number A9F75220

This is a two-pole miniature circuit-breaker with a D-curve trip characteristic, rated at 20A, used to protect circuits against overload and short-circuit conditions. The D-curve tripping profile suits loads with high inrush currents, such as transformers or motors, in AC or DC applications. It is fixed-mounted with an IP20 enclosure rating, suitable for use within control panels and switchboards, and terminates via single top or bottom terminals accepting rigid or flexible conductors.

Key specifications

• IP rating: IP20 conforming to IEC 60529
• Connection: Single terminal (top or bottom) 1…25 mm² rigid,Single terminal (top or bottom) 1…16 mm² flexible
• Operating temperature: -35…70 °C
• Colour: White
• Mounting: Fixed
