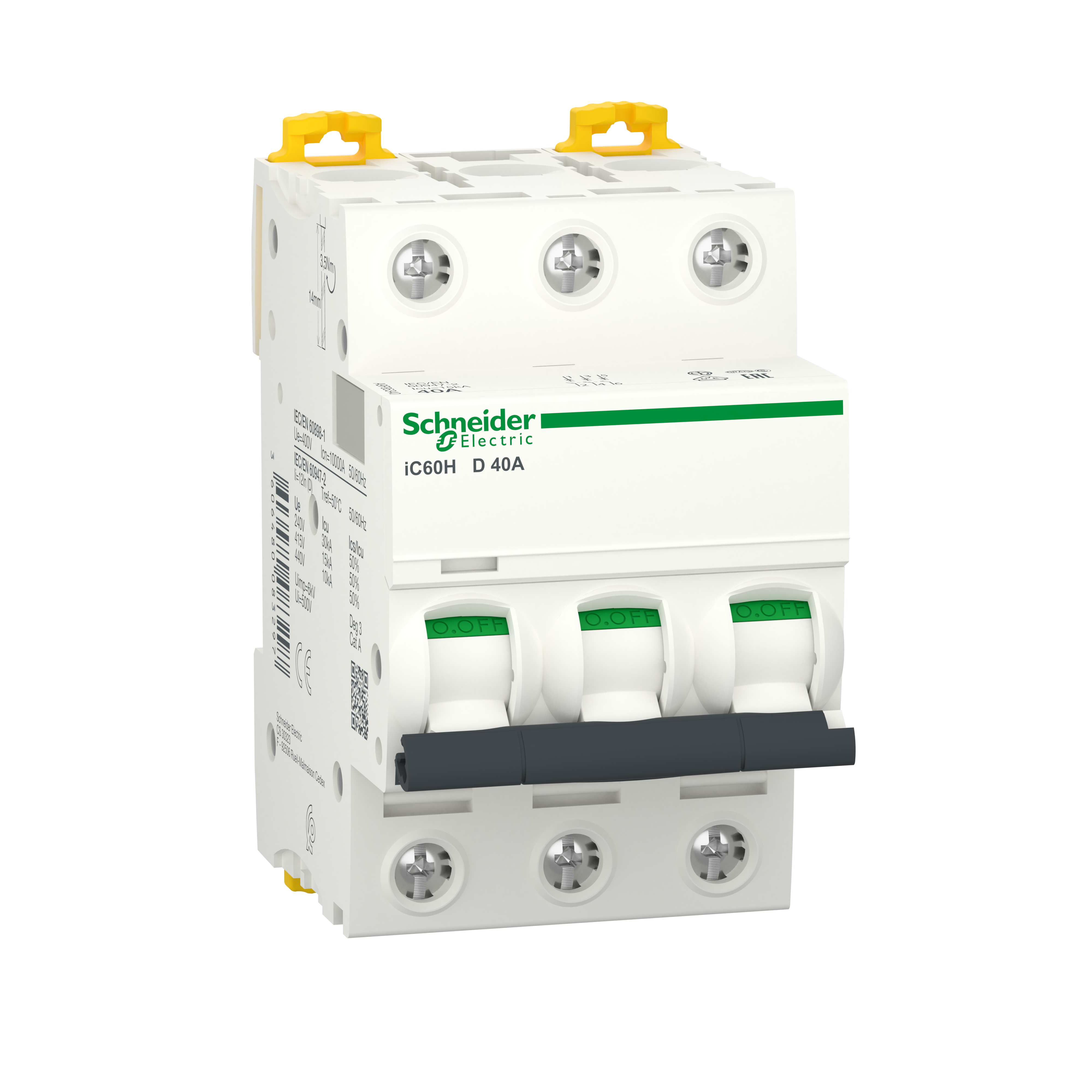

Schneider Miniature circuit-breaker, D, 3-pole, 40A Part number A9F85340

This is a three-pole miniature circuit-breaker with a D curve and 40A rating, used to provide overcurrent protection within control panels and distribution boards. It is rated IP20 and suited to fixed mounting, with a single terminal connection at top or bottom accepting rigid or flexible conductors, and operates across AC and DC supplies at 50/60 Hz. The operating temperature range of -35 to 70°C allows use in enclosures subject to wide ambient variation.

Key specifications

• IP rating: IP20 conforming to IEC 60529
• Connection: Single terminal (top or bottom) 1…35 mm² rigid,Single terminal (top or bottom) 1…25 mm² flexible
• Operating temperature: -35…70 °C
• Colour: White
• Mounting: Fixed
