Description

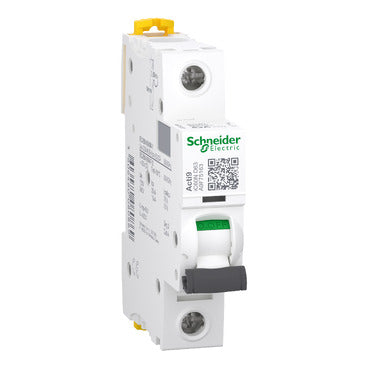

xThis Acti9 iC60N miniature circuit breaker features a single pole design with a rated current of 63 A, using a thermal-magnetic trip unit and D curve for optimized protection. It offers a breaking capacity of 6,000 A at 230 V AC and is suitable for distribution applications in both AC and DC networks.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35 °C to 70 °C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 85mm |
| Weight (g) | 215g |
| Packaging size / unit | 1 / 12 / 132 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Type | Single terminal (top or bottom) 1 - 35 mm² rigid / Single terminal (top or bottom) 1 - 25 mm² flexible |
| Max Frequency | 50/60 Hz |
| Type of Voltage | DC / AC |
| Mounting Type | DIN rail / Fixed |
| Current Rating / Rated Current | 63 A |
| Operating Period | 20000 cycles (mechanical) / 10000 cycles (electrical) |
| Warranty | 18 Months |
| Colour | White |
