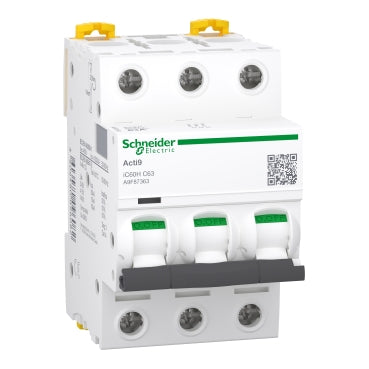

Schneider Miniature circuit breaker, C-curve, 3-pole, 15kA, 63A Part number A9F87363

This three-pole Acti9 iC60H miniature circuit breaker supports a 63 A rated current with a C curve, delivering a 10,000 A breaking capacity at 400 V AC for secure AC and DC distribution.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x
This three-pole Acti9 iC60H miniature circuit breaker supports a 63 A rated current with a C curve, delivering a 10,000 A breaking capacity at 400 V AC for secure AC and DC distribution.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsEN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-29
Temperature: Operating-35 °C to 70 °C
Part Depth (mm)78.5mm
Part Width (mm)54mm
Part Height (mm)85mm
Weight (g)375g
Packaging size / unit1 / 4 / 44 pc(s)
Tightening Torque3.5 Nm
Connection TypeSingle terminal (top or bottom) 1 - 35 mm² rigid / Single terminal (top or bottom) 1 - 25 mm² flexible
Max Frequency50/60 Hz
Type of VoltageAC / DC
Mounting TypeDIN rail / Fixed
Current Rating / Rated Current63 A
Operating Period20000 cycles (mechanical) / 10000 cycles (electrical)
Warranty18 Months
ColourWhite
