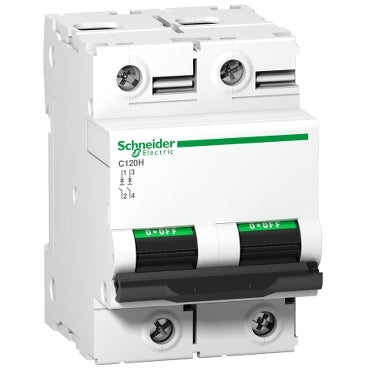

The Acti9 C120H two-pole miniature circuit breaker has a rated current of 80 A with a C curve. It offers a high breaking capacity of 15,000 A at 230-400 V AC, designed for secure AC distribution systems.
Vendor: Schneider Electric
SKU: A9N18457
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x
The Acti9 C120H two-pole miniature circuit breaker has a rated current of 80 A with a C curve. It offers a high breaking capacity of 15,000 A at 230-400 V AC, designed for secure AC distribution systems.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsEN/IEC 60898-1 / EN/IEC 60947-2
Temperature: Operating-30°C to 60 °C
Part Depth (mm)73mm
Part Width (mm)54mm
Part Height (mm)81mm
Weight (g)410g
Packaging size / unit1 / 6 / 36 pc(s)
Tightening Torque3.5 Nm
Connection TypeTunnel type terminals1 - 50 mm² rigid / Tunnel type terminals 1.5 - 35 mm² flexible
Max Frequency50/60 Hz
Type of VoltageAC
Rated Operating Voltage380 - 415 VAC 50/60 Hz
Mounting Type35 mm symmetrical DIN rail / Clip-on
Current Rating / Rated Current80 A
Operating Period20000 cycles (mechanical) / 5000 cycles conforming to IEC 60947-2 (electrical)
Warranty18 Months
ColourWhite
