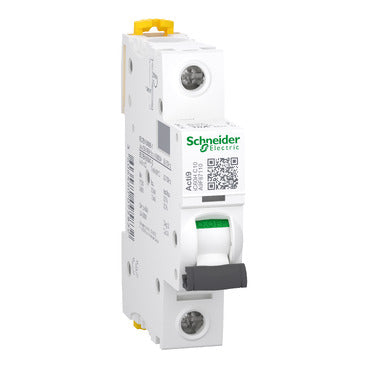

Schneider Miniature circuit breaker, C-curve, 1-pole, 15kA, 10A Part number A9F87110

This single-pole miniature circuit breaker uses a C-curve trip characteristic and is rated 10A with a 15kA breaking capacity. It provides overcurrent protection for circuits in control panels, mounting fixed to a DIN rail, and accepts rigid or flexible conductors via a single top or bottom terminal. With an IP20 enclosure rating and an operating temperature range of -35 to 70°C, it suits both AC and DC applications within panel and switchboard installations.

Key specifications

• IP rating: IP20 conforming to IEC 60529
• Connection: Single terminal (top or bottom) 1…25 mm² rigid,Single terminal (top or bottom) 1…16 mm² flexible
• Operating temperature: -35…70 °C
• Colour: White
• Mounting: Fixed
