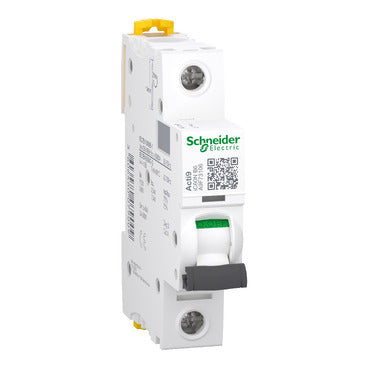

Schneider Miniature circuit-breaker, B-curve, 1-pole, 10kA, 6A Part number A9F73106

This miniature circuit-breaker provides a single pole of protection with a B-curve trip characteristic and a 10kA breaking capacity at 6A, suitable for protecting circuits against overload and short-circuit conditions. It is rated IP20 and operates across a temperature range of -35 to 70°C, making it suitable for fixed mounting within control panels and switchboards. Termination is via a single terminal accepting rigid or flexible conductors, tightened to 2 Nm, with a compact width of 18mm suited to DIN rail installation.

Key specifications

• IP rating: IP20 conforming to IEC 60529
• Connection: Single terminal (top or bottom) 1…25 mm² rigid,Single terminal (top or bottom) 1…16 mm² flexible
• Operating temperature: -35…70 °C
• Colour: White
• Mounting: Fixed
