Schneider Miniature circuit-breaker, 2-pole, D-curve, 10kA, 63A
Schneider Miniature circuit-breaker, 2-pole, D-curve, 10kA, 63A

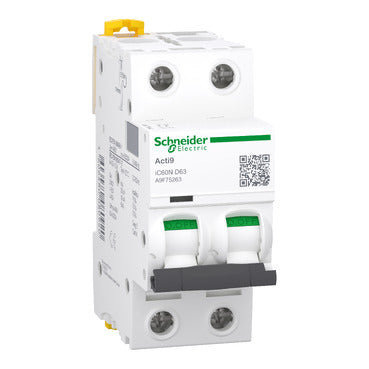

Schneider Miniature circuit-breaker, 2-pole, D-curve, 10kA, 63A Part number A9F75263

This Acti9 iC60N two-pole miniature circuit breaker features a rated current of 63 A and D curve, providing a 6,000 A breaking capacity at 400 V AC. It is ideal for AC and DC distribution applications with reliable thermal-magnetic protection.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This Acti9 iC60N two-pole miniature circuit breaker features a rated current of 63 A and D curve, providing a 6,000 A breaking capacity at 400 V AC. It is ideal for AC and DC distribution applications with reliable thermal-magnetic protection.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsEN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-7
Temperature: Operating-35 °C to 70 °C
Part Depth (mm)78.5mm
Part Width (mm)36mm
Part Height (mm)85mm
Weight (g)250g
Packaging size / unit1 / 6 / 66 pc(s)
Tightening Torque3.5 Nm
Connection TypeSingle terminal (top or bottom) 1 - 35 mm² rigid / Single terminal (top or bottom) 1 - 25 mm² flexible
Max Frequency50/60 Hz
Type of VoltageAC / DC
Mounting TypeDIN rail / Fixed
Current Rating / Rated Current63 A
Operating Period20000 cycles (mechanical) / 10000 cycles (electrical)
Warranty18 Months
ColourWhite
Documents
Documents
x
Download Datasheet
