Description

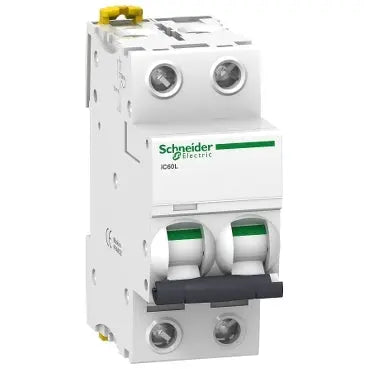

xThis two-pole miniature circuit breaker is designed for distribution systems with a rated current of 40 A. It operates using thermal-magnetic trip technology with a C curve, providing a breaking capacity of 4500 A at 400 V AC. The device is ideal for ensuring safe and reliable operation in various industrial environments.
Specifications
x| IP Rating | IP20 conforming to IEC 60529\nIP20 conforming to EN 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35°C to 70°C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 36mm |
| Part Height (mm) | 85mm |
| Weight (g) | 250g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Style | 2 Poles |
| Connection Type | Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC/DC |
| Mounting Type | DIN rail / Fixed |
| Current Rating / Rated Current | 40 A |
| Operating Period | 20000 cycles (Mechanical) / 10000 cycles(Electrical) |
| Warranty | 18 Months |
| Colour | White |
