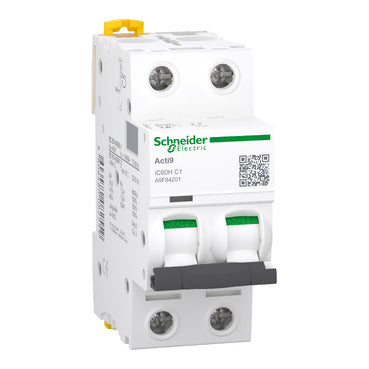

Schneider Mini circuit-breaker, thermal-magnetic, 2-pole, 1A Part number A9F84201

This is a two-pole thermal-magnetic miniature circuit-breaker rated at 1A, providing overcurrent and short-circuit protection within control panels and switchboards. It is rated IP20 and suitable for operation across a temperature range of -35 to 70°C, accepting single terminal connections for rigid or flexible conductors at either the top or bottom. Fixed mounting and compatibility with both AC and DC supplies at 50/60 Hz make it suitable for a range of panel-building applications.

Key specifications

• IP rating: IP20 conforming to IEC 60529
• Connection: Single terminal (top or bottom) 1…25 mm² rigid,Single terminal (top or bottom) 1…16 mm² flexible
• Operating temperature: -35…70 °C
• Colour: White
• Mounting: Fixed
