Description

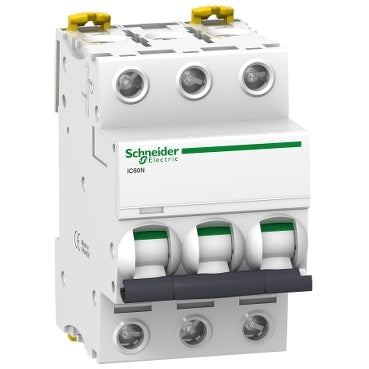

xThis miniature circuit breaker (MCB) from the Acti9 iC60N series is designed for distribution networks. It features a D curve and a rated current of 63 A, providing enhanced protection with a breaking capacity of 6,000 A at 400 V. Suitable for high-demand industrial applications.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35°C to 70 °C |
| Part Width (mm) | 54mm |
| Part Length (mm) | 78.5mm |
| Part Height (mm) | 85mm |
| Weight (g) | 375g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Style | 3 Poles |
| Connection Type | Single terminal (top or bottom) 1…35 mm² rigid / Single terminal (top or bottom) 1…25 mm² flexible |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC/DC |
| Mounting Type | DIN rail / Fixed |
| Current Rating / Rated Current | 63 A |
| Operating Period | 20000 cycles (Mechanical) / 10000 cycles (Electrical) |
| Warranty | 18 Months |
| Colour | White |
