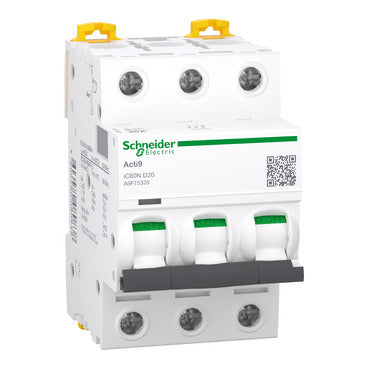

Schneider Mini circuit breaker, D, 3-pole, 10kA, 20A

This three-pole Acti9 iC60N miniature circuit breaker with a 20 A rated current and D curve offers a 6,000 A breaking capacity at 400 V AC, suited for secure AC and DC distribution applications.
Vendor: Schneider Electric
SKU: A9F75320
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
This three-pole Acti9 iC60N miniature circuit breaker with a 20 A rated current and D curve offers a 6,000 A breaking capacity at 400 V AC, suited for secure AC and DC distribution applications.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsEN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-10
Temperature: Operating-35 °C to 70 °C
Part Depth (mm)78.5mm
Part Width (mm)54mm
Part Height (mm)85mm
Weight (g)375g
Packaging size / unit1 / 4 / 44 pc(s)
Tightening Torque2 Nm
Connection TypeSingle terminal (top or bottom) 1 - 25 mm² rigid / Single terminal (top or bottom) 1 - 16 mm² flexible
Max Frequency50/60 Hz
Type of VoltageAC / DC
Mounting TypeDIN rail / Fixed
Current Rating / Rated Current20 A
Operating Period20000 cycles (mechanical) / 10000 cycles (electrical)
Warranty18 Months
ColourWhite
Documents
Documents
x
Download Datasheet
