Description

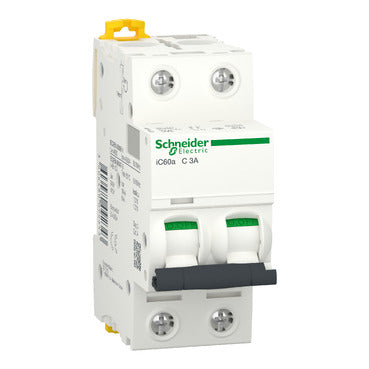

xThis 2-pole miniature circuit breaker (MCB) in the Acti9 iC60a range is designed for distribution applications with a rated current of 3 A. It has a breaking capacity of 4,500 A and ensures efficient overcurrent protection in AC networks. Suitable for residential and commercial electrical installations.
Specifications
x| IP Rating | IP20 B conforming to EN/IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35°C to 70 °C |
| Part Width (mm) | 36mm |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 2 Nm |
| Connection Style | 2 Poles |
| Connection Type | Single terminal (top or bottom) 1…25 mm² rigid / Single terminal (top or bottom) 1…16 mm² flexible |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC |
| Mounting Type | DIN rail / Removable comb busbar installed |
| Current Rating / Rated Current | 3 A |
| Warranty | 18 Months |
| Colour | White |
