Description

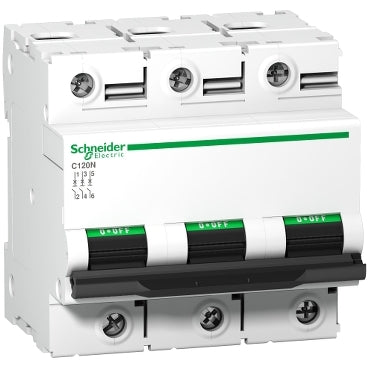

xThis mini circuit breaker is a three-pole device with a C-curve trip characteristic, rated at 80A with a 10kA breaking capacity, used for protecting circuits within control panels. It carries an IP20 rating and is designed for clip-on mounting to standard rail, with tunnel-type terminals accepting rigid or flexible conductors. Suitable for AC applications at 50/60 Hz, it operates across a temperature range of -25 to 70°C, making it appropriate for a variety of industrial panel environments.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Tunnel type terminals1…50 mm² rigid,Tunnel type terminals1.5…35 mm² flexible
- Operating temperature: -25…70 °C
- Colour: White
- Mounting: Clip-on
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60898-1,EN/IEC 60947-2 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 73mm |
| Part Width (mm) | 81mm |
| Part Length (mm) | 15mm |
| Part Height (mm) | 81mm |
| Tightening Torque (N.m) | 3.5 Nm |
| Connection Type | Tunnel type terminals1…50 mm² rigid,Tunnel type terminals1.5…35 mm² flexible |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | <= 375 V DC |
| Mounting Type | Clip-on |
| Operating Period(Mech) | 20000 cycles |
| Operating Period(Elec) | 5000 cycles conforming to IEC 60947-2 |
| Colour | White |
