Description

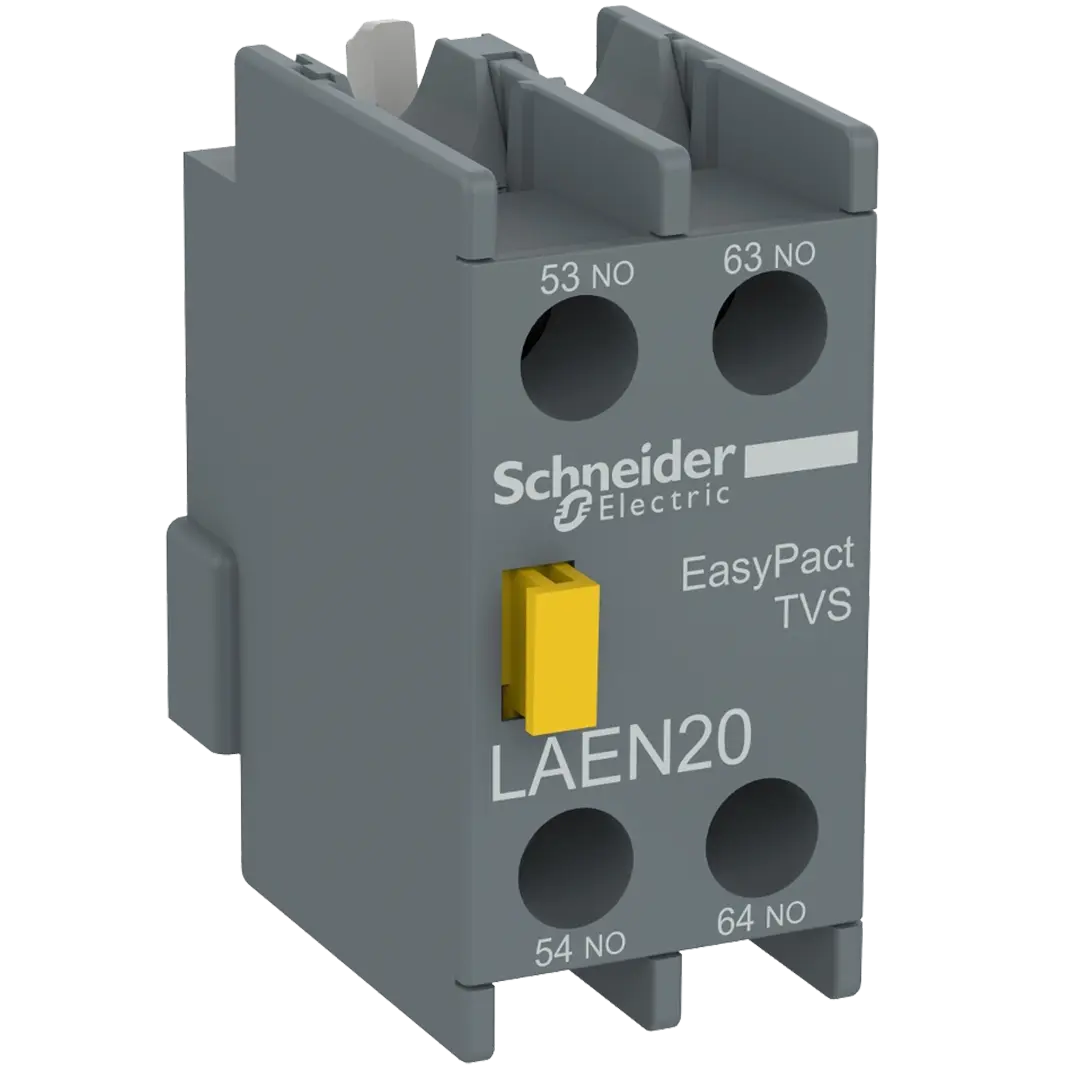

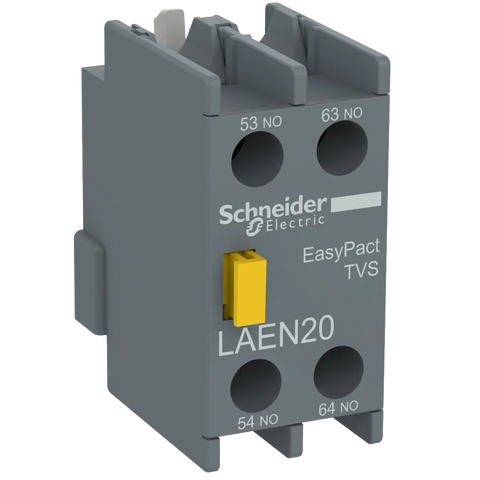

xThe auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments. ... The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking. The range EasyPact’s functional unit is providing making and breaking current function during 20 years. This range consists of 2 NO pole contactors composition powered by voltage of 690V AC. The representative product used for the analysis is EasyPact TVS LC1E200-630. The environmental impacts of this referenced product are representative of the impacts of the other products of the range which are developed with a similar technology.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-1 |
| Temperature: Operating | -5…55 °C |
| Connection Type | Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end,Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end,Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end,Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| Rated Operating Voltage | <= 690 V |
| Operating Period(Mech) | 10 Mcycles |
| Colour | Grey (RAL 7011) |
