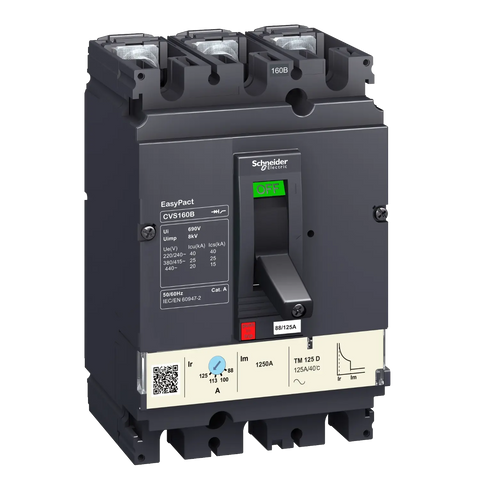

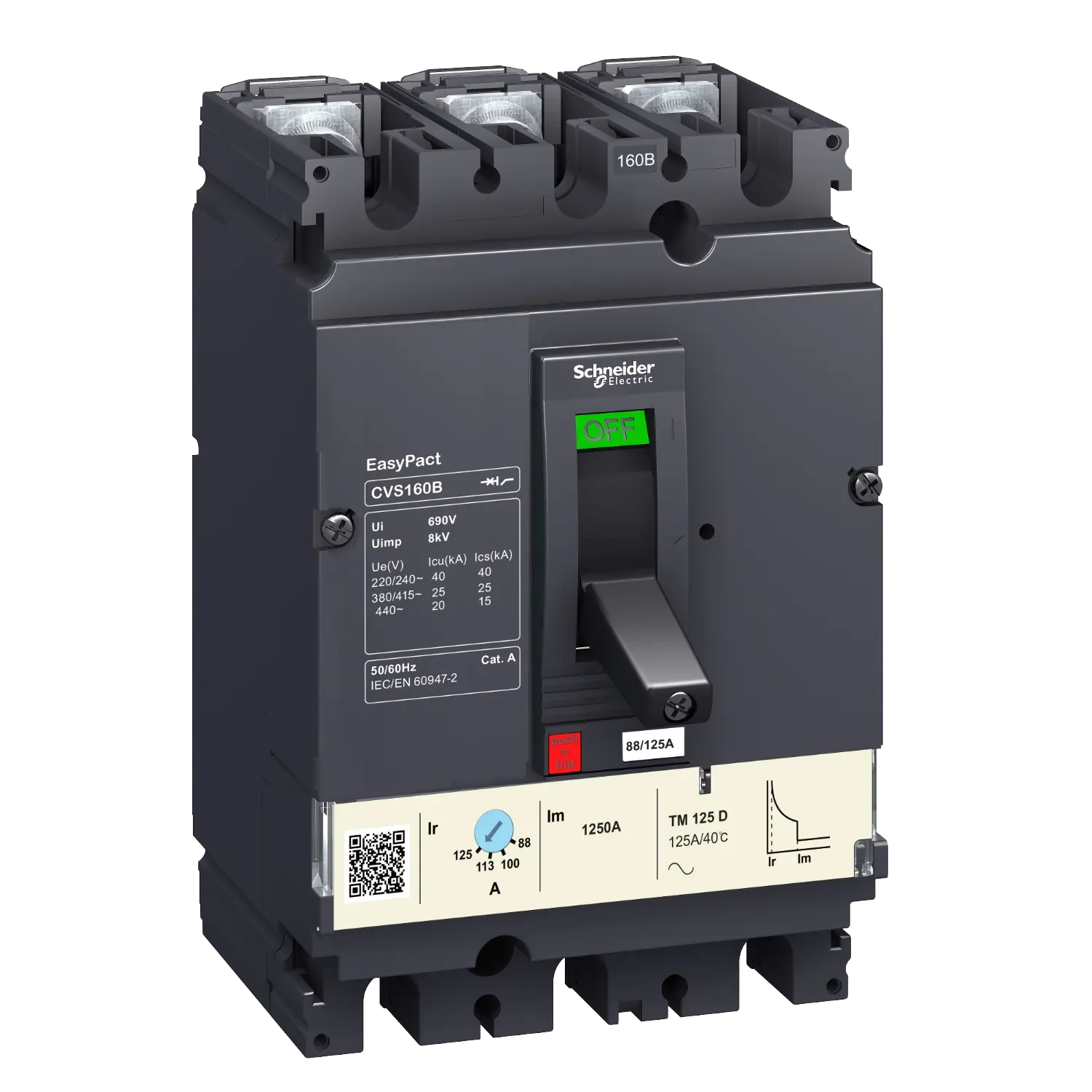

Schneider CVS160B TM160D Circuit breaker 3P3D Part number ZZA_LV516303

EASYPACT CVS 100-250 - CVS250F TM160D 3P3D This product is a moulded case circuit breaker. This range consists of all products of Easypact CVS 100-250A family: 100/160/250B, 100/160/250F and 100/160/250NA range. The environmental impacts of this referenced product are representative of the impacts of the other products of the range...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
EASYPACT CVS 100-250 - CVS250F TM160D 3P3D This product is a moulded case circuit breaker. This range consists of all products of Easypact CVS 100-250A family: 100/160/250B, 100/160/250F and 100/160/250NA range. The environmental impacts of this referenced product are representative of the impacts of the other products of the range which are developed with a similar technology. The main function of the Easypact CVS 100-250A product range is to protect the wires and equipment’s in the circuit by allowing Off, On and tripped operation with a service period of 20 years.
Specifications
Specifications
x
RangeEasyPact
Range of productEasyPact CVS100...250
product nameEasyPact CVS
Device short nameCVS160B
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi addWithout
[In] rated current160 A at 40 °C
network typeAC
Utilisation categoryCategory A
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating160 A at 40 °C
Protection typeOverload protection (thermal) Short-circuit protection (magnetic)
[Uimp] rated impulse withstand8 kV conforming to EN/IEC 60947-2
Network frequency50/60 Hz
Breaking capacity codeB
[Ics] rated service breaking15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
capacity25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability25000 cycles
Electrical durability12000 cycles 415 V In conforming to IEC 60947-2
control typeToggle
Thermal protection adjustment112…160 A
