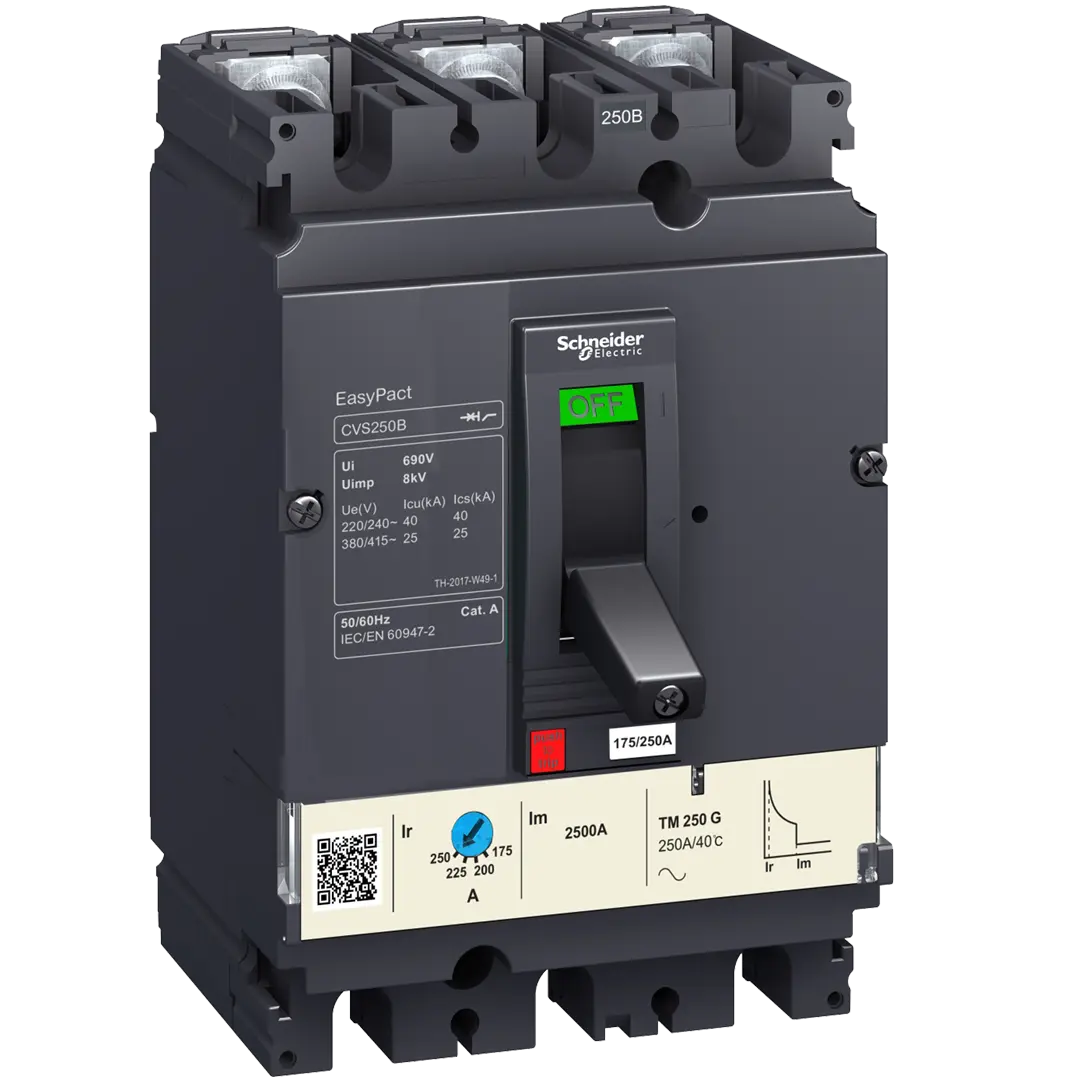

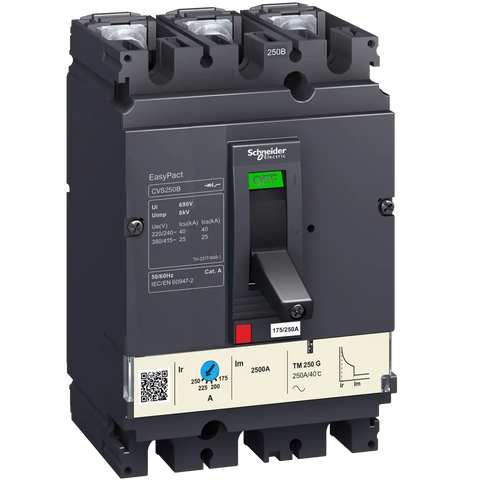

xEASYPACT CVS 100-250 - CVS250F TM80D 3P3D
\nThis product is a moulded case circuit breaker. This range consists of all products of Easypact CVS 100-250A family: 100/160/250B, 100/160/250F and 100/160/250NA range. The environmental impacts of this referenced product are representative of the impacts of the other products of the range which are developed with a similar technology. The main function of the Easypact CVS 100-250A product range is to protect the wires and equipment’s in the circuit by allowing Off, On and tripped operation with a service period of 20 years.
Specifications
x| Product Name | EasyPact CVS100B TM80D Circuit Breaker |
| Model Number | LV510306 |
| Product Type | Circuit Breaker |
| Range | EasyPact CVS |
| Device Short Name | CVS100B |
| Product Brand | Schneider Electric |
| Product Availability | Discontinued on December 1, 2024 |
Specifications
| Number of Poles | 3P |
| Protected Poles Description | 3D |
| Rated Current (In) | 80 A at 40 °C |
| Trip Unit Name | TM-D |
| Trip Unit Technology | Thermal-Magnetic |
| Trip Unit Rating | 80 A at 40 °C |
| Protection Type | Overload (thermal), Short-circuit (magnetic) |
| Breaking Capacity (Icu) | 25 kA at 380/415 V AC 50/60 Hz |
| Rated Service Breaking Capacity (Ics) | 25 kA at 380/415 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Network Frequency | 50/60 Hz |
| Utilization Category | Category A |
| Control Type | Toggle |
| Thermal Protection Adjustment Range | 56 - 80 A |
| Long Time Pick-up Adjustment Type | Ir Adjustable |
| Long Time Pick-up Adjustment Range | 0.7 - 1 x In |
| Instantaneous Pick-up Adjustment Type | Ii Fixed |
| Instantaneous Pick-up Adjustment Range | 640 A |
| Contact Position Indicator | Yes |
| Mounting Support | Backplate |
| Mounting Mode | Fixed |
| Upside Connection | Front |
| Downside Connection | Front |
| Connections - Terminals | Screw connection |
| Connection Pitch | 35 mm |
| Compatibility Code | CVS100 |
Environmental Data
| Carbon Footprint (kg CO₂ eq, Total Life Cycle) | 425 |
| Packaging Made with Recycled Cardboard | Yes (Minimum 70%, 50% in US) |
| Take-back Program | No |
| SCIP Number | 49bf38c5-56a0-475d-90bd-a88ef3d2ace2 |
Physical Dimensions
| Height | 161 mm |
| Width | 105 mm |
| Depth | 86 mm |
| Product Weight | 1.5 kg |
Certifications
| Product Certifications | IEC, GOST |
| Standards | EN 60947-2, IEC 60947-2 |
| Electrical Shock Protection Class | Class II |
| Pollution Degree | 3 (conforming to IEC 60664-1) |
| IP Degree of Protection | IP40 |
Operating Conditions
| Ambient Air Temperature for Operation | -25 to 70 °C |
| Ambient Air Temperature for Storage | -50 to 85 °C |
| Mechanical Durability | 30,000 cycles |
| Electrical Durability | 12,000 cycles at 415 V In |
Warranty
| Warranty Period | 18 months |
