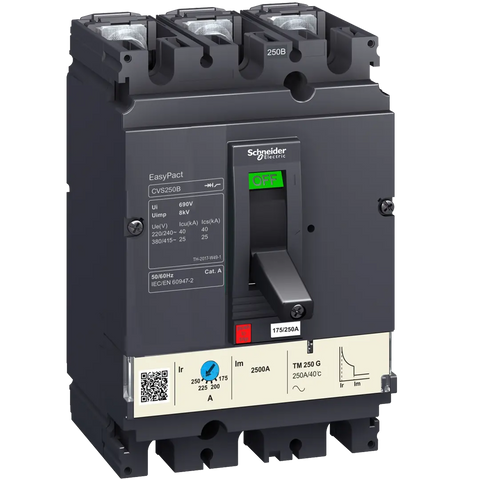

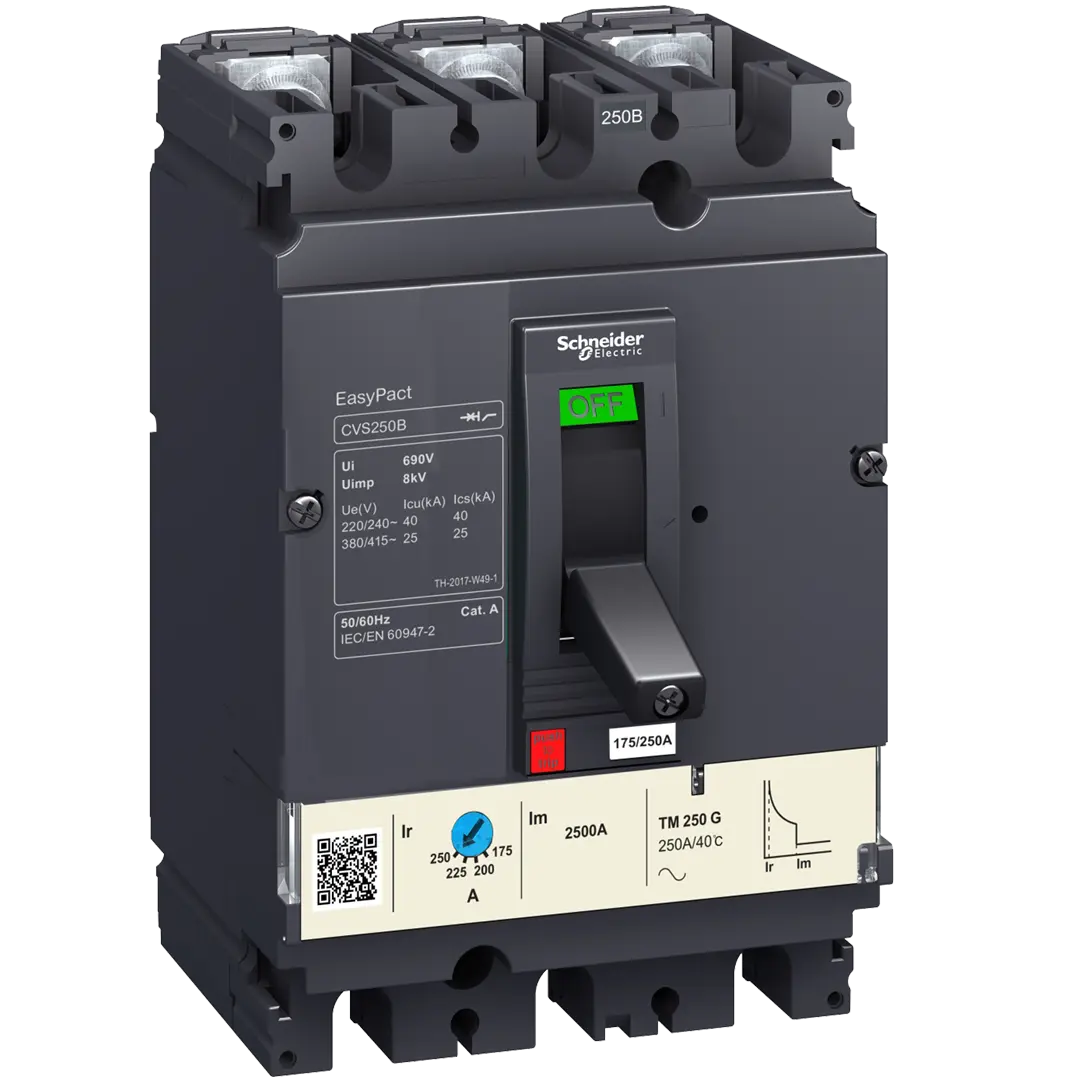

Schneider CVS100B TM40D Circuit breaker 3P3D Part number ZZA_LV510303

EASYPACT CVS 100-250 - CVS250F TM40D 3P3D This product is a moulded case circuit breaker. This range consists of all products of Easypact CVS 100-250A family: 100/160/250B, 100/160/250F and 100/160/250NA range. The environmental impacts of this referenced product are representative of the impacts of the other products of the range...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
EASYPACT CVS 100-250 - CVS250F TM40D 3P3D This product is a moulded case circuit breaker. This range consists of all products of Easypact CVS 100-250A family: 100/160/250B, 100/160/250F and 100/160/250NA range. The environmental impacts of this referenced product are representative of the impacts of the other products of the range which are developed with a similar technology. The main function of the Easypact CVS 100-250A product range is to protect the wires and equipment’s in the circuit by allowing Off, On and tripped operation with a service period of 20 years.
Specifications
Specifications
x
Product data sheetLV510303
CharacteristicsEasypact CVS - CVS100B TM40D circuit breaker - 3P/3d
Range of productEasypact CVS100...250
Product or component typeCircuit breaker
Device short nameCVS100B
Device applicationDistribution
Poles description3P
Protected poles description3d
Earth leakage protection (Vigiadd on) Without
[In] rated current100 A ( 40 °C )
Breaking capacity codeB
Network typeAC
Utilisation categoryCategory A
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Protection typeOverload protection (thermal) Short-circuit protection (magnetic)
Network frequency50/60 Hz
Control typeToggle
Mounting modeFixed
Mounting supportBackplate
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
[Uimp] rated impulse withstandvoltage 8 kV conforming to EN/IEC 60947-2
Oct 17, 20181
Thermal protection adjustmentrange 0...40 A
Mechanical durability30000 cycles
Electrical durability12000 cycles conforming to IEC 60947-2 415 V In
Connection pitch35 mm
Contact position indicatorYes
Long time pick-up adjustmenttype Ir Adjustable
Long time delay adjustment typeFixed
Short-time delay adjustment typeFixed
Instantaneous pick-up adjustmenttype Fixed
Height161 mm
Width105 mm
Depth86 mm
Electrical shock protection classClass II
StandardsEN 60947-2 IEC 60947-2
Product certificationsGOST IEC
IP degree of protectionIP40
Ambient air temperature for operation-25...70 °C
Ambient air temperature for storage-50...85 °C
