Description

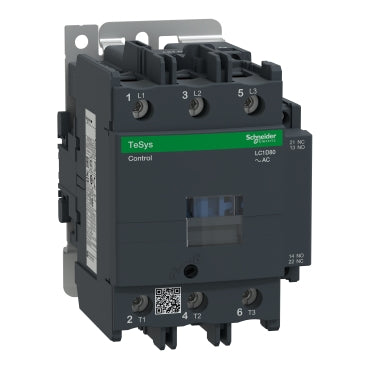

xThis TeSys D contactor features a 3-pole configuration for motor control and resistive loads. It is rated for 80 A operational current at 440 V AC and comes with a 230 V AC 50/60 Hz coil. The device is suitable for applications requiring high performance and reliability.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CB Scheme / CE / CSA / CSA C22.2 No 14 / EAC / EN 60947-4-1 / EN 60947-5-1 / IEC 60335-1:Clause 30.2 CCC / IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / IEC 60947-5-1 / Marine / UKCA / UL / UL 60335-2-40:Annex JJ / UL 60947-4-1 |
| Part Depth (mm) | 130mm |
| Part Width (mm) | 85mm |
| Part Height (mm) | 127mm |
| Weight (g) | 1590g |
| Packaging size / unit | 1 / 5 / 80 pc(s) |
| Tightening Torque | 1.2 Nm |
| Connection Type | Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: connector 1 4 - 50 mm² - cable stiffness: flexible without cable end / Power circuit: connector 2 4 - 25 mm² - cable stiffness: flexible without cable end / Power circuit: connector 1 4 - 50 mm² - cable stiffness: flexible with cable end / Power circuit: connector 2 4 - 16 mm² - cable stiffness: flexible with cable end / Power circuit: connector 1 4 - 50 mm² - cable stiffness: solid without cable end / Power circuit: connector 2 4 - 25 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 300 VDC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 80 - 125 A |
| Operating Period | 4 Mcycles (mechanical) / 0.8 Mcycles 125 A AC-1 at Ue <= 440 V / 1.5 Mcycles 80 A AC-3 at Ue <= 440 V / 1.5 Mcycles 80 A AC-3e at Ue <= 440 V (electrical) |
| Warranty | 18 Months |
