Description

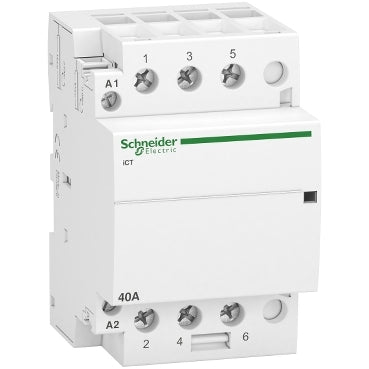

xThe Acti9 iCT contactor with 3 poles and 3 NO contacts is rated for 40 A (AC-7A) and 15 A (AC-7B). Operating at 220-240 V AC, it offers reliable remote control for motor and lighting systems in residential and commercial setups.
Specifications
x| IP Rating | IP20 |
| Country of Origin | Germany |
| Compliance/Certifications | IEC/EN 61095 |
| Temperature: Operating | -5°C to 60 °C |
| Part Depth (mm) | 60mm |
| Part Width (mm) | 54mm |
| Part Height (mm) | 85mm |
| Packaging size / unit | 1 / 4 / 24 pc(s) |
| Tightening Torque | 0.35 Nm - 0.8 Nm |
| Connection Style | 3-pole |
| Connection Type | Control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² flexible / Control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid / Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid / Power circuit: tunnel type terminals1 cable(s) 6-16 mm² flexible / Power circuit: tunnel type terminals1 cable(s) 6-25 mm² rigid |
| Max Frequency | 50 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 400 VAC 50 Hz |
| Mounting Type | Clip-on 35 mm symmetrical DIN rail |
| Current Rating / Rated Current | 15 A - 40 A |
| Power Consumption | 6.5 VA |
| Operating Period | 1000000 cycles (Mechanical) / 30000 cycles - 100000 cycles (Electrical) |
| Warranty | 12 Months |
| Colour | White |
