Description

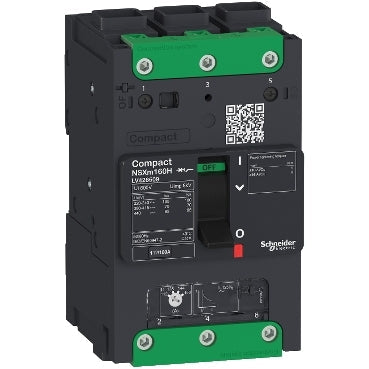

xThe ComPact NSXm is a 3-pole circuit breaker rated for 63A, providing protection for distribution circuits within control panels. It carries an IP40 rating to IEC 60529 and complies with EN/IEC 60947, suiting installation in enclosed panel environments. Rated for AC operation up to 690V at 50/60Hz, it is fitted by screw mounting and operates across a temperature range of -25°C to 70°C, with a grey (RAL 7016) housing.
Key specifications
- IP rating: IP40 conforming to IEC 60529
- Operating temperature: -25…70 °C
- Colour: Grey (RAL 7016)
- Mounting: By screws
Specifications
x| IP Rating / Detailed | IP40 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947 |
| Temperature: Operating | -25…70 °C |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 V AC 50/60 Hz |
| Mounting Type | By screws |
| Operating Period(Mech) | 20000 cycles |
| Operating Period(Elec) | 10000 cycles at 440 V In,20000 cycles at 440 V In/2,5000 cycles at 690 V In,10000 cycles at 690 V In/2 |
| Colour | Grey (RAL 7016) |
