Schneider Circuit breaker, w/o micrologic, fixed, 4-pole, 2500A
Schneider Circuit breaker, w/o micrologic, fixed, 4-pole, 2500A

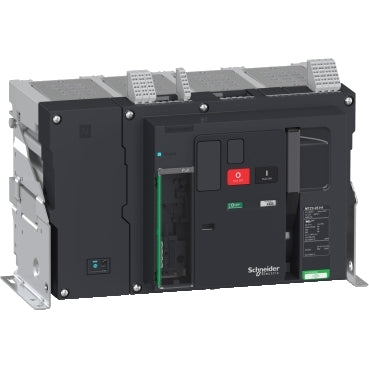

Schneider Circuit breaker, w/o micrologic, fixed, 4-pole, 2500A Part number LV848076

This is a fixed 4-pole circuit breaker rated at 2500 A, supplied without a Micrologic trip unit, for use in low-voltage distribution boards up to 690 VAC. It provides an IP30 degree of protection and is rated for operation across a temperature range of -25°C to 70°C, suiting installation in...
Vendor: Schneider Electric
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This is a fixed 4-pole circuit breaker rated at 2500 A, supplied without a Micrologic trip unit, for use in low-voltage distribution boards up to 690 VAC. It provides an IP30 degree of protection and is rated for operation across a temperature range of -25°C to 70°C, suiting installation in enclosed control panels and switchboards. The unit complies with EN/IEC 60947-1 and 60947-2, and carries an IECEE CB Scheme certification.

Key specifications

  • IP rating: IP30
  • Operating voltage: 690 VAC
  • Rated current: 2500 A
  • Mounting: Fixed
Specifications
Specifications
x
IPIP30
ComplianceCE / EN/IEC 60947-1 / EN/IEC 60947-2 / EN/IEC 60947-2 Annex H / IECEE CB Scheme / IEC 61557-12
Temperature-25°C to 70°C
Width 537mm
Height352mm
Depth300mm
Weight65000g
Operating Voltage690 VAC
Rated Current2500 A
Connection Style4 Poles
Mounting TypeFixed
Operating Period20000 Cycles
