Description

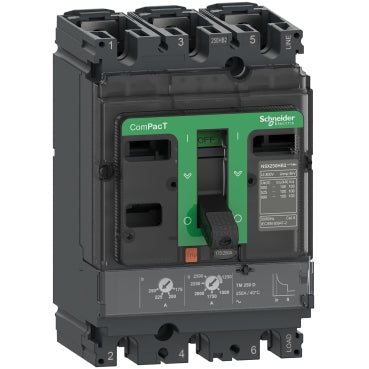

xThis ComPacT NSX250F circuit breaker with a TMD trip unit provides thermal-magnetic protection for distribution systems, supporting a rated current of 200 A and a breaking capacity of 36 kA at 415 V AC.
Specifications
x| IP Rating | IP40 |
| Compliance/Certifications | EN/IEC 60947-2 |
| Temperature: Operating | -25°C to 70 °C |
| Part Depth (mm) | 86mm |
| Part Width (mm) | 105mm |
| Part Height (mm) | 161mm |
| Weight (g) | 2400g |
| Packaging size / unit | 1 / 7 pc(s) |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC 50/60 Hz |
| Current Rating / Rated Current | 200 A |
| Operating Period | 20000 cycles (mechanical) / 20000 cycles at 440 V In/2 / 10000 cycles at 440 V In / 10000 cycles at 690 V In/2 / 5000 cycles at 690 V In (electrical) |
