Description

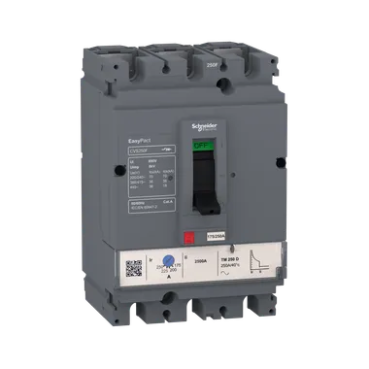

xThis EasyPact CVS250F circuit breaker is designed for distribution applications, featuring a rated current of 250A and a breaking capacity of 36kA at 415VAC. It includes a thermal-magnetic trip unit (TM-D) for both overload and short-circuit protection, making it ideal for reliable circuit protection in industrial systems.
Specifications
x| IP Rating | IP40 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60947-2 / GOST / IEC 60947-2 / IEC |
| Temperature: Operating | -25°C to 70 °C |
| Part Depth (mm) | 86mm |
| Part Width (mm) | 105mm |
| Part Height (mm) | 161mm |
| Weight (g) | 1700g |
| Packaging size / unit | 1 / 8 / 64 pc(s) |
| Connection Style | Screw connection |
| Type of Voltage | AC |
| Mounting Type | Fixed |
| Current Rating / Rated Current | 250 A |
| Operating Period | Mechanical durability 20000 cycles / Electrical durability 10000 cycles |
