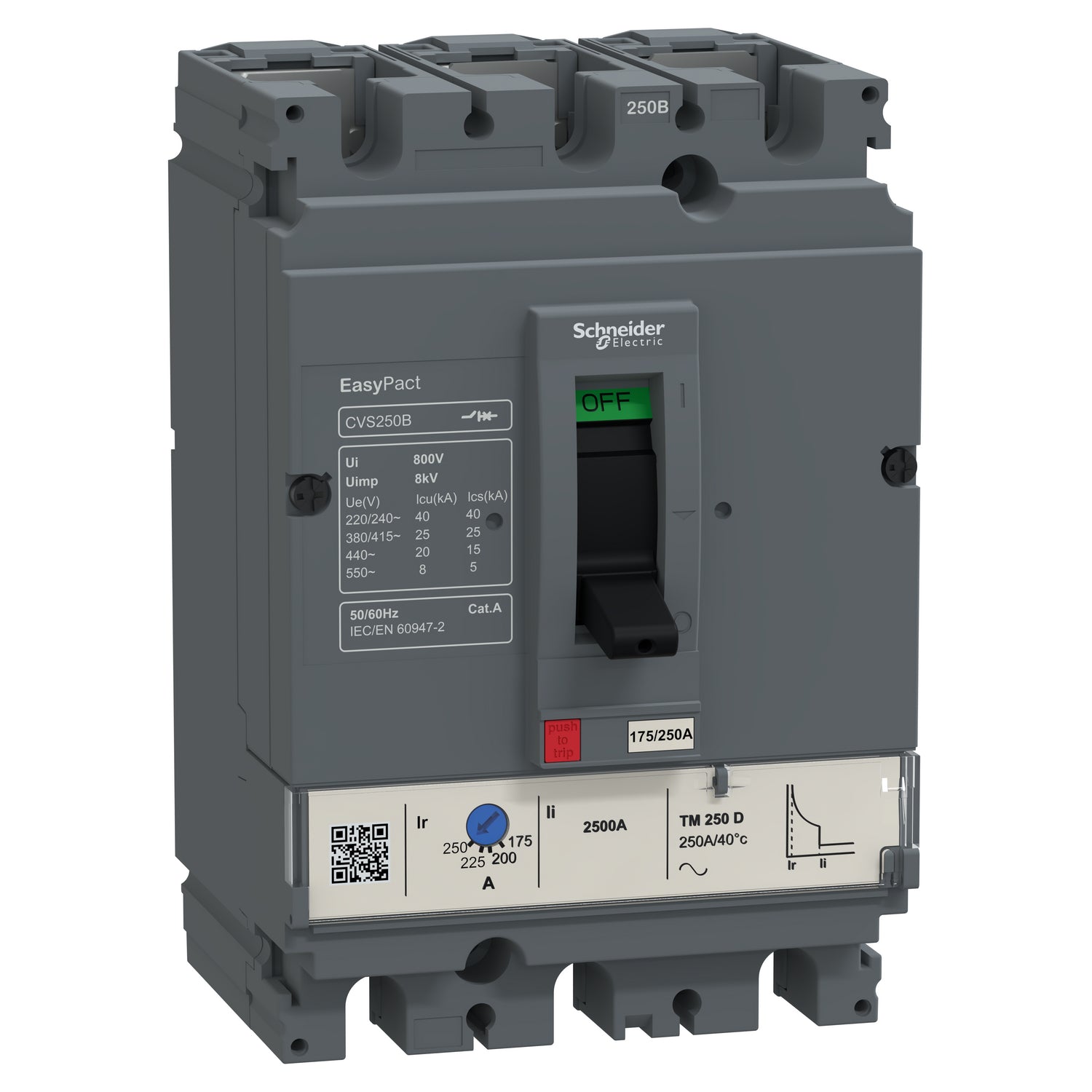

Schneider Circuit breaker, TM-D trip unit, 3-pole, 250A Part number LV525303

This circuit breaker uses a TM-D trip unit and is configured as a 3-pole device rated at 250A. It is designed for fixed mounting with screw connections, suited to AC systems operating at 50/60 Hz. With an IP40 rating and an operating temperature range of -25 to 70°C, it is...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This circuit breaker uses a TM-D trip unit and is configured as a 3-pole device rated at 250A. It is designed for fixed mounting with screw connections, suited to AC systems operating at 50/60 Hz. With an IP40 rating and an operating temperature range of -25 to 70°C, it is intended for use within control panels and switchboards.

Key specifications

  • IP rating: IP40
  • Connection: Screw connection
  • Operating temperature: -25…70 °C
  • Mounting: Fixed
Specifications
Specifications
x
IP Rating / DetailedIP40
Compliance/CertificationsIEC 60947-2,EN 60947-2
Temperature: Operating-25…70 °C
Part Depth (mm)86mm
Part Width (mm)105mm
Part Height (mm)161mm
Connection TypeScrew connection
Max Frequency50/60 Hz
Type of VoltageAC
Mounting TypeFixed
Operating Period(Mech)20000 cycles
Operating Period(Elec)10000 cycles 415 V In conforming to IEC 60947-2
Documents
Documents
x
Download Datasheet
