Description

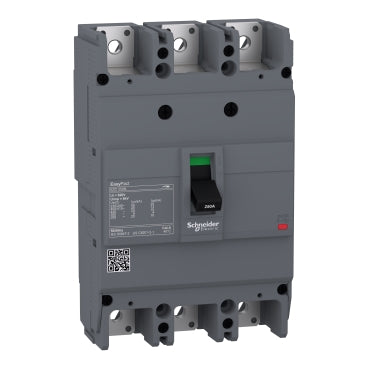

xThis 250 A three-pole circuit breaker offers thermal-magnetic trip technology for overload and short-circuit protection. It supports AC and DC systems with operational voltages up to 550 V AC and 250 V DC.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | EN/IEC 60947-1 / EN/IEC 60947-2 / GB/T 14048.2 |
| Temperature: Operating | -25°C to 70 °C |
| Part Depth (mm) | 60mm |
| Part Width (mm) | 105mm |
| Part Height (mm) | 165mm |
| Packaging size / unit | 1 pc(s) / 8 pc(s) / 64 pc(s) |
| Max Frequency | 50/60 Hz |
| Type of Voltage | DC / AC |
| Rated Operating Voltage | 250 V DC conforming to IEC 60947-2 / 550 VAC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | Backplate / Fixed |
| Current Rating / Rated Current | 250 A |
| Operating Period | 10000 cycles (mechanical) / Category A: 5000 cycles 415 VAC 50/60 Hz conforming to IEC 60947-2 (electrical) |
| Warranty | 18 Months |
