Description

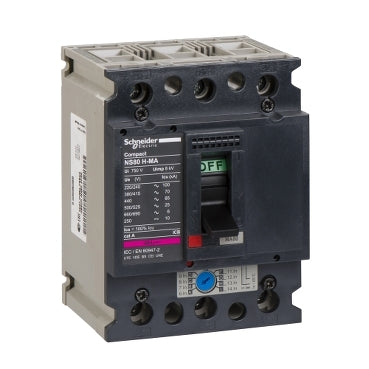

xThis circuit breaker is a 3-pole device with magnetic trip protection, rated at 80A and intended for fixed mounting within control panels. It operates on AC supplies up to 690 V at 50/60 Hz and carries an IP40 rating, suitable for use across an operating temperature range of -25 to 70 °C. Typical applications include protection of distribution circuits and machine control panels requiring reliable overcurrent interruption.
Key specifications
- IP rating: IP40 conforming to IEC 60529
- Operating temperature: -25…70 °C
- Mounting: Fixed
Specifications
x| IP Rating / Detailed | IP40 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-2 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 80mm |
| Part Width (mm) | 90mm |
| Part Height (mm) | 120mm |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | Fixed |
| Operating Period(Mech) | 20000 cycles |
| Operating Period(Elec) | 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2,7000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 |
