Description

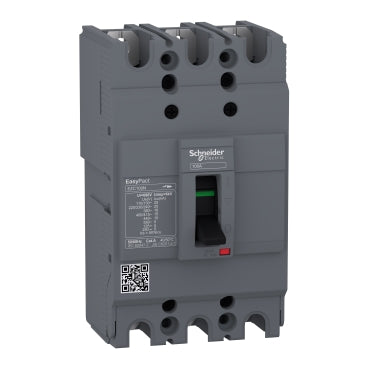

xThis three-pole circuit breaker is rated for 80 A and features thermal-magnetic trip technology. It is suitable for distribution applications in AC and DC systems with operational voltages up to 550 V AC and 250 V DC.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | EN/IEC 60947-1 / EN/IEC 60947-2 / GB/T 14048.2 / JIS C8201-2-2 |
| Temperature: Operating | -25°C to 70 °C |
| Part Depth (mm) | 60mm |
| Part Width (mm) | 75mm |
| Part Height (mm) | 130mm |
| Packaging size / unit | 1 / 12 / 384 pc(s) |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC / DC |
| Rated Operating Voltage | 250 V DC conforming to IEC 60947-2 / 550 VAC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | Backplate / Fixed |
| Current Rating / Rated Current | 80 A |
| Operating Period | 13000 cycles (mechanical) / Category A: 4000 cycles 415 VAC 50/60 Hz conforming to IEC 60947-2 (electrical) |
| Warranty | 18 Months |
